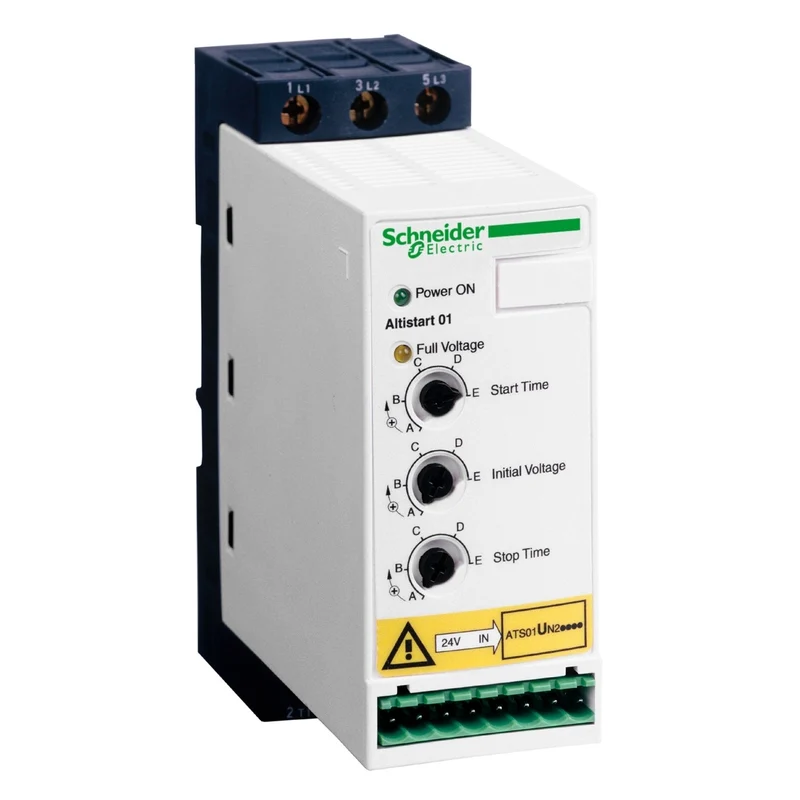

Schneider ATS01N212QN Altistart 01 Soft Starter 12A 380-415V 5.5kW DIN Rail

The Schneider Electric ATS01N212QN is a three-phase soft starter from the Altistart 01 series for asynchronous motors rated 5.5 kW at 380-415 V, with a 12 A rated current. It delivers controlled voltage ramp starting and stopping for simple machine applications, reducing mechanical stress and inrush current on motor start-up.

Technical specifications:

• Commercial reference: ATS01N212QN
• Manufacturer: Schneider Electric
• EAN: 3389110667264
• Series / range: Altistart 01
• Product type: Soft starter
• Number of phases: Three-phase
• Rated supply voltage: 380...415 V (-10/+10%)
• Motor power: 5.5 kW at 380...415 V three-phase
• Rated current (Icl): 12 A
• Usage category: AC-53B per EN/IEC 60947-4-2
• Start type: Voltage ramp
• Start / stop time: Adjustable 1 to 10 s
• Starting torque: 30...80% of direct-on-line motor torque
• Supply frequency: 50...60 Hz
• Digital input voltage: 24...40 V
• IP protection: IP20
• Operating temperature: -10...40 °C (without derating); 40...50 °C (with 2% per °C current derating)
• Storage temperature: -25...70 °C per EN/IEC 60947-4-2
• Dimensions (W x H x D): 45 x 124 x 131 mm
• Weight: 0.42 kg
• Certifications: CE, CCC, UL, GOST, CSA, C-Tick
• Standard: EN/IEC 60947-4-2

Features and benefits:

• Integrated bypass relay reduces steady-state power dissipation to 4 W at full load after acceleration
• Adjustable start and stop ramp times (1 to 10 s) for smooth, controlled motor transitions
• Control circuit supply integrated in the starter - no separate external control power source required
• Status LEDs indicate device activation (green) and rated voltage reached (yellow)
• Compact 45 mm wide body for straightforward DIN rail panel integration

Applications:

• Simple machine drives with three-phase asynchronous motors up to 5.5 kW
• Conveyor systems and small pumps where reduced motor inrush current is required
• Industrial control panels and OEM machine builder enclosures requiring compact soft starters

Compliant with EN/IEC 60947-4-2. Part of the Schneider Electric Altistart 01 range.

Also known as: Schneider ATS01N212QN, Schneider Electric ATS01N212QN, Altistart 01 soft starter 12A 5.5kW.
