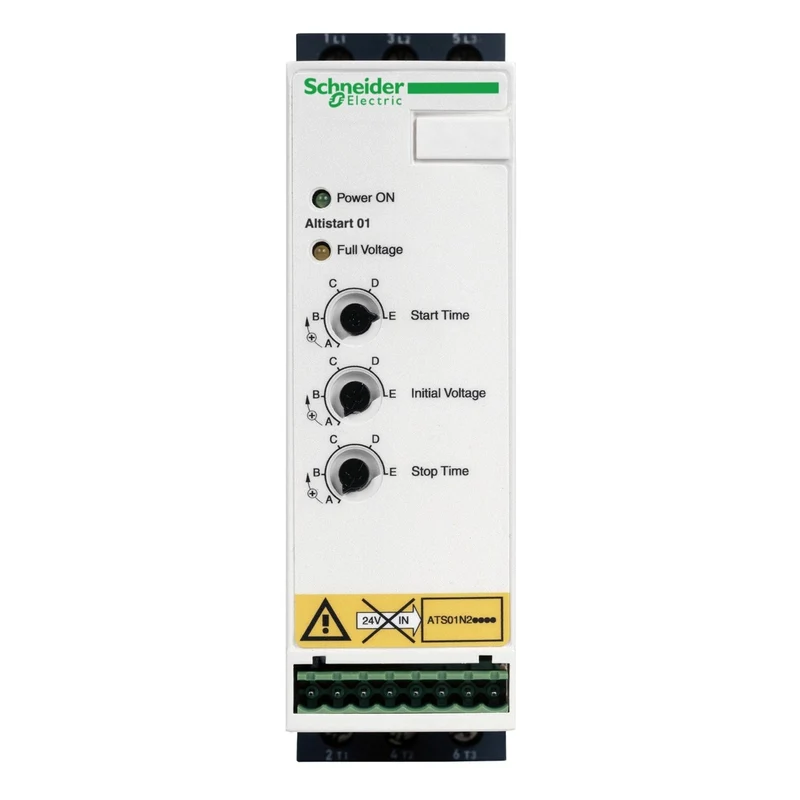

Schneider ATS01N222QN Altistart 01 Soft Starter 22A 380-415V 11kW DIN Rail

The Schneider Electric ATS01N222QN is a three-phase soft starter from the Altistart 01 series, designed for asynchronous motors rated up to 11 kW at 380-415 V with a 22 A rated starter current. It delivers adjustable voltage ramp starting and smooth stop ramp to reduce mechanical stress and inrush current, making it suited for simple machine applications.

Technical specifications:

• Commercial reference: ATS01N222QN
• Manufacturer: Schneider Electric
• EAN: 3389110667318
• Series / range: Altistart 01
• Product type: Soft starter
• Application: Asynchronous motors
• Network phases: Three-phase
• Rated supply voltage: 380...415 V (-10%/+10%)
• Rated starter current: 22 A
• Motor power: 11 kW at 380...415 V (three-phase); 7.5 kW at 380...415 V (three-phase)
• Usage category: AC-53B per EN/IEC 60947-4-2
• Starting type: Voltage ramp
• Start / stop ramp time: Adjustable 1 to 10 s
• Starting torque: 30...80% of direct-on-line motor torque
• Integrated bypass: Yes
• Supply frequency: 50...60 Hz (-5%/+5%)
• Digital input voltage: 24...40 V
• Relay outputs: R1A, R1C NO
• Operating position: Vertical +/- 10 degrees
• Dimensions (WxHxD): 45 x 154 x 131 mm
• Weight: 0.56 kg
• IP rating: IP20
• Pollution degree: 2 per EN/IEC 60947-4-2
• Operating temperature: -10...40°C (without derating); 40...50°C (2% per °C derating)
• Storage temperature: -25...70°C
• Operating altitude: up to 1000 m without derating
• Standard: EN/IEC 60947-4-2
• Certifications: CE, CSA, UL, CCC, C-Tick, GOST

Features and benefits:

• Integrated bypass relay reduces steady-state power dissipation to 4.5 W at full load after run-up
• Adjustable start and stop ramp times from 1 to 10 s for smooth motor acceleration and deceleration
• Digital inputs LI1, LI2, and BOOST support run, stop, and boost-at-start functions with positive logic
• Open collector output LO1 signals end of starting sequence; relay output R1 (NO) available for status signalling
• Compact 45 mm wide body suits space-constrained DIN rail control panels

Applications:

• Soft starting of three-phase asynchronous motors in conveyors and simple machinery
• Pump and fan motor control requiring reduced inrush current and mechanical stress at start-up
• Industrial automation and motor control panels with DIN rail mounting
• Motor drive systems requiring smooth controlled deceleration via adjustable stop ramp

Compliant with EN/IEC 60947-4-2. Part of the Schneider Electric Altistart 01 range.
