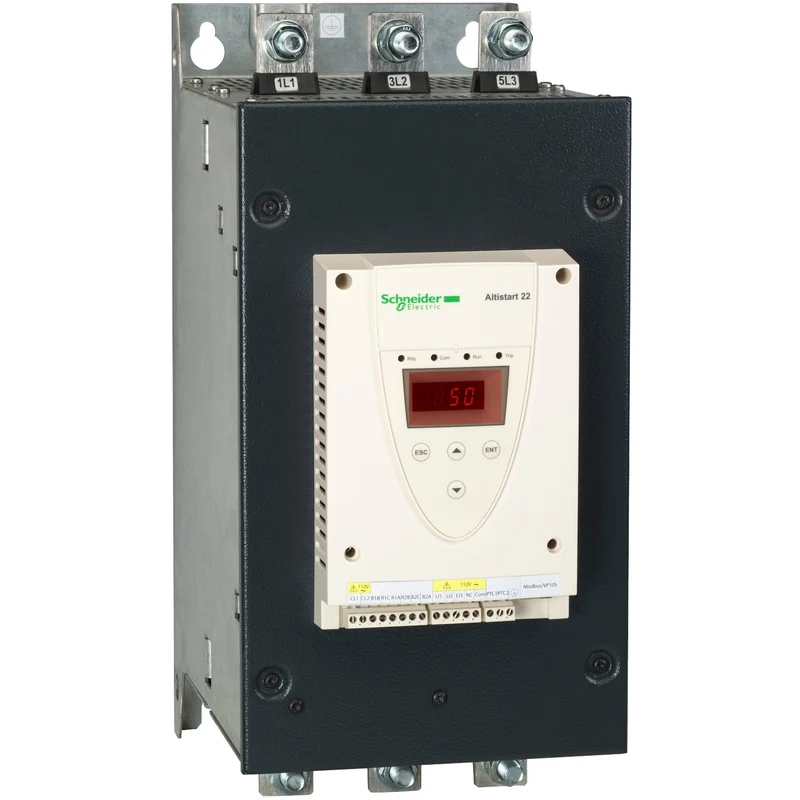

Schneider ATS22C32Q Altistart 22 Soft Starter 320A 400-440V 160kW Bypass

The Schneider Electric ATS22C32Q is a 320 A three-phase soft starter from the Altistart 22 series, designed for asynchronous motors up to 160 kW at 400-440 V or 90 kW at 230 V. Torque-controlled starting limits inrush current to 3.5 In, while the integrated bypass and Modbus RS485 communication port make it well-suited for pump and fan drive systems in industrial automation panels.

Technical specifications:

• Commercial reference: ATS22C32Q
• Manufacturer: Schneider Electric
• EAN: 3606480211270
• Series / range: Altistart 22
• Product type: Soft starter
• Network phases: Three-phase
• Rated supply voltage: 230...440 V (-15%...+10%)
• Motor power: 160 kW at 400-440 V / 90 kW at 230 V
• Motor power range (AC-3): 55...100 kW at 200...240 V; 110...220 kW at 380...440 V
• Starter current (Icl): 320 A
• Usage category: AC-53A
• Control circuit voltage: 230 V (-15%...+10%), 50/60 Hz
• Digital outputs: 2 relay outputs (R1, R2), 230 V C/O
• Digital inputs: 3, 24 V, 5 mA, 4.3 kΩ
• Communication: Modbus, RS485 multidrop, RJ45
• IP protection: IP00
• Cooling: Fan-cooled
• Dimensions (WxHxD): 206 x 425 x 299 mm
• Weight: 33 kg
• Operating temperature: -10...40°C (no derating); 40...60°C (2.2%/°C current derating)
• Storage temperature: -25...70°C
• Certifications: UL, CCC, C-Tick, CSA, GOST, CE
• Standard: IEC 60947-4-2
• Warranty: 18 months

Features and benefits:

• Integrated bypass reduces power dissipation after the motor reaches full speed
• Torque-controlled starting caps inrush current at 3.5 In, protecting motor windings and the supply network
• Modbus RS485 serial interface supports integration with supervisory control and automation systems
• Two relay outputs (R1, R2) configurable for running, alarm, fault, and ready status signals
• Output current adjustable from 0.4 to 1 x Icl to match a range of motor ratings

Applications:

• Soft starting of pumps and fans in industrial plants and building services installations
• HVAC motor control requiring smooth ramp-up and reduced start-up current draw
• Process automation panels with Modbus-based remote monitoring and control
• High-power motor drives up to 160 kW in three-phase industrial networks

Compliant with IEC 60947-4-2. Part of the Schneider Electric Altistart 22 range.

Also known as: Schneider ATS22C32Q, Schneider Electric ATS22C32Q, Altistart 22 320A soft starter.
