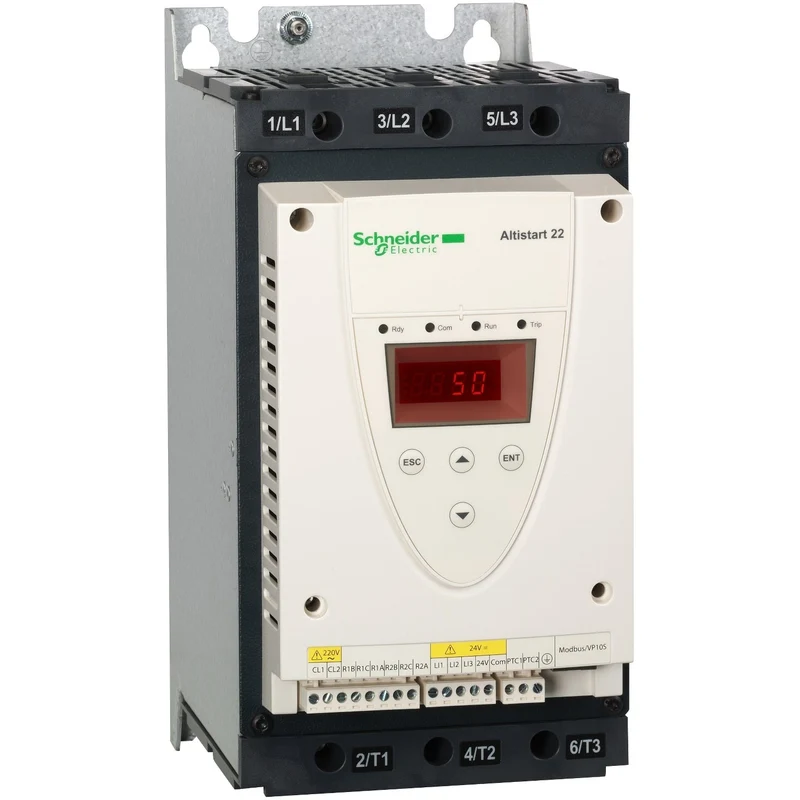

Schneider ATS22D62Q Altistart 22 Soft Starter 62A 400-440V 30kW Internal Bypass

The Schneider Electric ATS22D62Q is an Altistart 22 soft starter for three-phase asynchronous motors, rated at 62 A with motor power up to 30 kW at 400-440 V. It provides torque-controlled starting with current limited to 3.5 In, reducing mechanical stress and supply network disturbances during motor start-up.

Technical specifications:

• Commercial reference: ATS22D62Q
• Manufacturer: Schneider Electric
• EAN: 3606480167218
• Series / range: Altistart 22
• Product type: Soft starter
• Rated current (Icl): 62 A
• Supply voltage: 230...440 V (-15/+10%)
• Motor power: 15 kW at 230 V / 30 kW at 400 V / 30 kW at 440 V
• Motor power range AC-3: 15-25 kW at 200-240 V three-phase; 30-50 kW at 380-440 V three-phase
• Control circuit voltage: 230 V 50/60 Hz
• Usage category: AC-53A
• Factory-set current: 57 A
• IP protection rating: IP20
• Dimensions (W x H x D): 145 x 295 x 207 mm
• Weight: 12 kg
• Operating temperature: -10...40°C (without derating); 40...60°C (with 2.2% per °C current derating)
• Storage temperature: -25...70°C
• Communication: Modbus RS485 multidrop, RJ45 connector, 4800/9600/19200 bps
• Digital inputs: 3 (24 V positive logic)
• Digital outputs: 2 relay outputs (R1, R2), 230 V C/O, 5 A 250 V AC resistive
• Cooling: Fan-forced air
• Certifications: CE, UL, CSA, CCC, C-Tick, GOST
• Standard: IEC 60947-4-2

Features and benefits:

• Internal bypass function reduces power dissipation to 59 W during steady-state operation
• Built-in Modbus RS485 communication for integration with PLCs and automation systems
• Integrated protection covers supply phase loss, motor thermal overload, and starter thermal overload
• PTC probe input (750 Ohm) and adjustable output current (0.4-1 Icl) for precise motor protection
• Suitable for delta-connected motor windings and direct motor connection configurations

Applications:

• Soft starting of pumps in water supply, irrigation, and HVAC systems
• Fan and ventilator motor control in commercial and industrial buildings
• Three-phase asynchronous motor starting in industrial automation and control panels

Compliant with IEC 60947-4-2. Part of the Schneider Electric Altistart 22 range.

Also known as: Schneider ATS22D62Q, Schneider Electric ATS22D62Q, Altistart 22 62A soft starter.
