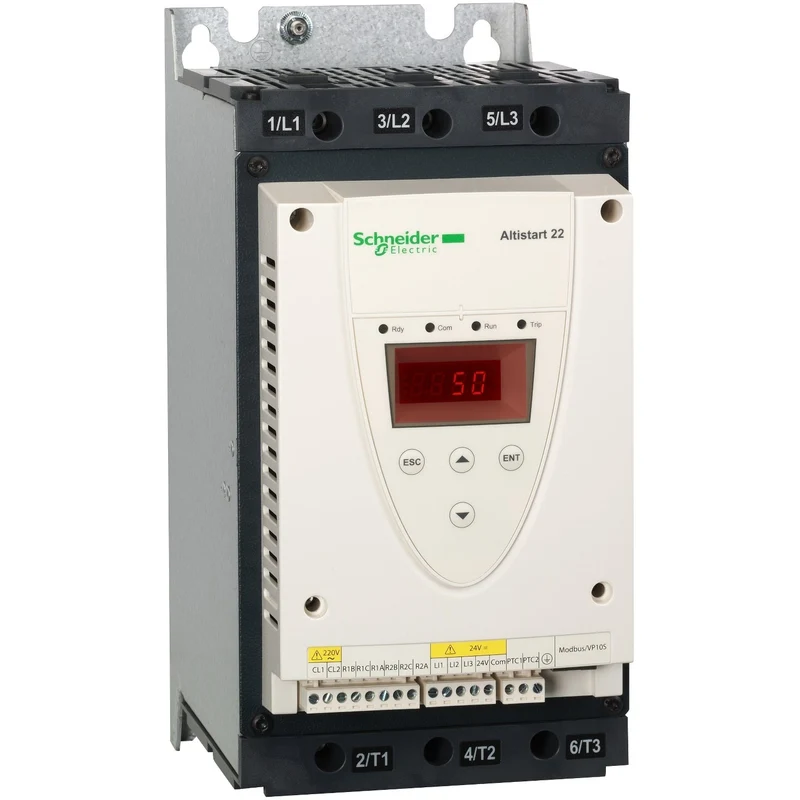

Schneider ATS22D88Q Altistart 22 Soft Starter 88A 400-440V 45kW Internal Bypass

The Schneider Electric ATS22D88Q is a three-phase soft starter from the Altistart 22 series, designed for smooth starting of asynchronous motors. Rated at 88 A with an integrated internal bypass, it supports motor powers of 22 kW at 230 V and 45 kW at 400-440 V. Torque-controlled starting limits inrush current to 3.5 In, making it well suited for pumps and fans.

Technical specifications:

• Commercial reference: ATS22D88Q
• Manufacturer: Schneider Electric
• EAN: 3606480167232
• Series / range: Altistart 22
• Product type: Soft starter
• Rated starter current (Icl): 88 A
• Factory setting current: 81 A
• Supply voltage: 230...440 V -15...+10%
• Motor power: 22 kW at 230 V / 45 kW at 400-440 V
• Control circuit voltage: 230 V 50/60 Hz
• Usage category: AC-53A
• IP protection rating: IP20
• Digital outputs: 2 relay outputs, 230 V (R1 and R2)
• Digital inputs: 3 (LI1, LI2, LI3), 24 V, positive logic
• Communication: Modbus via RJ45, RS485 multidrop, 4800-19200 bps
• Cooling: Fan-assisted air circulation
• Dimensions (WxHxD): 145 x 295 x 207 mm
• Weight: 12 kg
• Operating temperature: -10...40 °C (no derating); up to 60 °C with 2.2% current derating per °C
• Storage temperature: -25...70 °C
• Power dissipation: 66 W (standard applications)
• Standard: IEC 60947-4-2
• Certifications: CE, CCC, CSA, UL, GOST, C-Tick

Features and benefits:

• Integrated internal bypass reduces heat dissipation during steady-state motor operation
• Torque-controlled start limits current to 3.5 In, reducing mechanical stress on driven loads
• Modbus RS485 serial communication enables remote monitoring and control
• Built-in thermal protection for both motor and starter, plus supply phase loss detection
• PTC probe input (750 O) for direct motor temperature monitoring
• Wide supply tolerance (195...484 V) and network frequency range (45...66 Hz)

Applications:

• Pump motor starting in water treatment, irrigation, and HVAC installations
• Fan motor control in ventilation and air handling systems
• Three-phase motor control panels requiring reduced inrush current
• Modbus-networked automation systems with centralised motor management

Compliant with IEC 60947-4-2. Part of the Schneider Electric Altistart 22 range.

Also known as: Schneider ATS22D88Q, Schneider Electric ATS22D88Q, Altistart 22 88A soft starter, ATS22 45kW soft starter.
