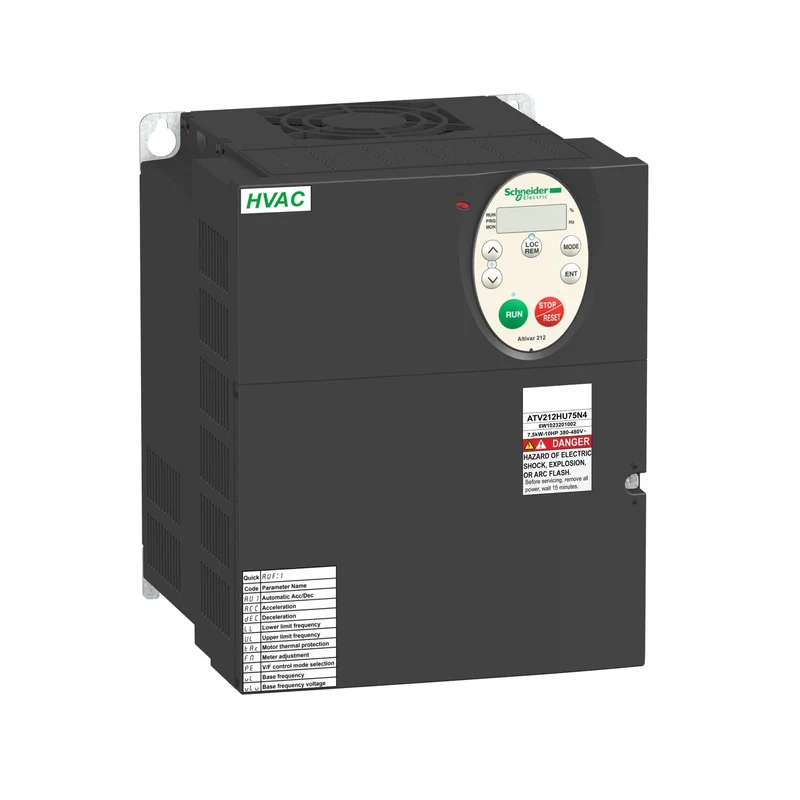

Schneider ATV212HU75N4 Altivar ATV212 VFD 7.5 kW 380-480V 3-Phase HVAC IP21

The Schneider Electric ATV212HU75N4 is a variable frequency drive from the Altivar 212 series, rated at 7.5 kW (10 hp) for controlling asynchronous motors in HVAC applications. Designed for three-phase 380...480 V supply networks, it incorporates an integrated Class C2 EMC filter and IP21 enclosure protection for reliable building automation use.

Technical specifications:

• Commercial reference: ATV212HU75N4
• Manufacturer: Schneider Electric
• EAN: 3606480322501
• Series / range: Altivar 212
• Motor power: 7.5 kW / 10 hp
• Supply voltage: 380...480 V three-phase (-15...+10%)
• Supply voltage range: 323...528 V
• Supply frequency: 50...60 Hz (-5...+5%)
• Line current: 14.7 A at 380 V / 11.7 A at 480 V
• Continuous output current: 16 A at 380 V / 16 A at 460 V
• Maximum transient current: 17.6 A for 60 s
• Apparent power: 12.2 kVA at 380 V
• Output frequency: 0.5...200 Hz
• IP protection rating: IP21
• EMC filter: Class C2 integrated
• Communication protocols: Modbus, BACnet, LonWorks, APOGEE FLN, METASYS N2
• Physical interface: 2-wire RS485, RJ45
• Digital inputs: 3 configurable, 24 V DC, PLC level 1
• Digital outputs: 2
• Analog inputs: 2 (0...10 V DC or 0...20 mA, 10-bit resolution)
• Analog outputs: 1 (0...10 V DC or 0...20 mA, 10-bit resolution)
• Switching frequency: 6...16 kHz adjustable
• Power dissipation: 291 W
• Power terminal connection: 16 mm² / AWG 6
• Control terminal connection: 2.5 mm² / AWG 14

Features and benefits:

• Integrated Class C2 EMC filter provides compliance without requiring an external filter
• Five built-in building automation protocols - Modbus, BACnet, LonWorks, APOGEE FLN, and METASYS N2 - simplify integration
• Multiple motor control profiles including sensorless flux vector, V/f with Energy Saving, and 5-point U/f for optimized efficiency
• Adjustable linear acceleration and deceleration ramps from 0.01 to 3200 s for smooth motor transitions
• 120% transient overload capacity for 60 s accommodates demanding load conditions

Applications:

• Variable speed pumps in HVAC building management systems
• Variable speed fans and air handling units
• HVAC spiral compressors
• Building automation variable speed drive installations

Part of the Schneider Electric Altivar 212 range, purpose-built for HVAC pump and fan applications.

Also known as: Schneider ATV212HU75N4, Schneider Electric ATV212HU75N4, Altivar 212 7.5 kW VFD, ATV212 variable speed drive.
