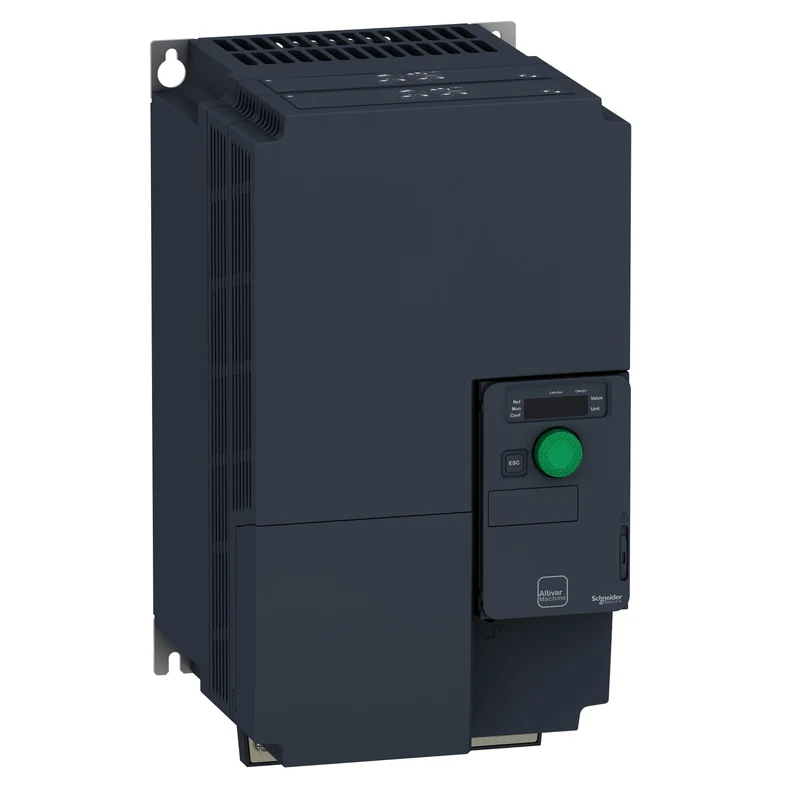

Schneider ATV320D15N4C Altivar Machine ATV320 VFD 15 kW 380-500V 3 phase Compact

The ATV320D15N4C is a Schneider Electric Altivar Machine ATV320 variable frequency drive rated at 15 kW from a 380-500 V, 3-phase supply. Built for complex machine applications, the compact wall-mount unit includes an integrated EMC filter and built-in braking resistor, delivering 33.0 A rated output current.

Technical specifications:

• Commercial reference: ATV320D15N4C
• Manufacturer: Schneider Electric
• Series / range: Altivar Machine ATV320
• Product type: Variable frequency drive (VFD)
• Motor power: 15.0 kW
• Supply voltage: 380-500 V AC, 3-phase, -15/+10%
• Rated output current: 33.0 A
• Max output voltage: 500 V
• Line current: 47.3 A at 380 V / 33.3 A at 500 V
• Apparent power: 28.8 kVA at 500 V
• Network frequency: 50-60 Hz
• Line short-circuit current Isc: 22 kA
• Max output frequency: 599 Hz
• Switching frequency: 2-16 kHz adjustable, nominal 4 kHz
• Transient overload: 170-200% rated torque
• Power dissipation: 452.0 W at 380 V, 4 kHz
• Digital inputs: 7 (STO + DI1-DI6, 24 V DC; DI5 pulse input 0-30 kHz)
• Digital outputs: 3 (open collector, 30 V DC, 100 mA)
• Analog inputs: 3 (AI1: 0-10 V; AI2: +/-10 V differential; AI3: 0-20 mA, 10-bit)
• Analog outputs: 1 (AQ1: 0-20 mA or 0-10 V DC, 10-bit)
• Relay outputs: R1 (1 NO/1 NC configurable) and R2 (1 NO configurable), 100,000 cycle life
• Communication: Modbus serial, CANopen (integrated)
• Optional communication modules: EtherCAT, Profibus DP V1, Profinet, Ethernet/IP, DeviceNet, Ethernet Powerlink
• IP protection rating: IP20
• Dimensions (W x H x D): 180 x 330 x 198 mm
• Weight: 6.9 kg
• Mounting: Wall mount, vertical +/- 10 degrees
• Certifications: CE, ATEX, UL, CSA, EAC, RCM
• Standard: IEC 61800-5-1

Features and benefits:

• Multiple motor control profiles for asynchronous motors: U/F 2-point and 5-point, sensorless flux vector, and Energy Saving variants; sensorless vector control for synchronous motors
• Onboard safety functions STO, SS1, and SLS - reducing external safety relay requirements
• 4-quadrant operation with DC injection braking and integrated braking resistor
• Flexible I/O with positive and negative logic digital inputs and configurable relay outputs
• Wide fieldbus support via optional plug-in communication modules for multi-protocol machine integration

Applications:

• Speed and torque control for induction and synchronous motors on complex industrial machines
• Conveyor, pump, fan, and compressor drives in manufacturing automation panels
• OEM machine builders requiring integrated safety functions and multi-protocol fieldbus connectivity

Compliant with IEC 61800-5-1 and EMC immunity standards IEC 61000-4-2, 61000-4-3, 61000-4-4, 61000-4-5, and 61000-4-6. Part of the Schneider Electric Altivar Machine ATV320 series.

Also known as: Schneider ATV320D15N4C, Schneider Electric ATV320D15N4C, ATV320 15kW VFD, Altivar 320 15kW variable speed drive.
