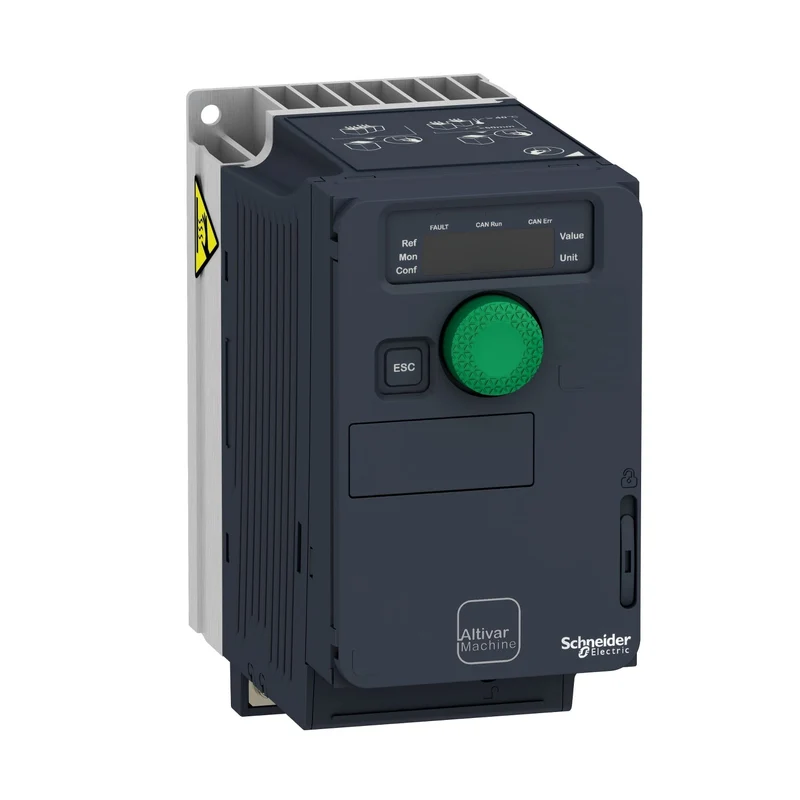

Schneider ATV320U02M2C Altivar ATV320 VFD 0.18 kW 200-240V Compact

The Schneider Electric ATV320U02M2C is an Altivar ATV320 variable frequency drive (VFD) rated at 0.18 kW for single-phase 200-240V supply. Designed for complex machine applications, this compact wall-mount drive provides precise motor speed control with an integrated Class C2 EMC filter and IP20 protection.

Technical specifications:

• Commercial reference: ATV320U02M2C
• Manufacturer: Schneider Electric
• EAN: 3606480966514
• Series / range: Altivar Machine ATV320
• Product type: Variable frequency drive (VFD)
• Motor power: 0.18 kW (demanding applications)
• Supply voltage: 200-240V AC, -15/+10%
• Rated output current: 1.5 A
• Max output voltage: 240V
• Line current: 3.4 A at 200V / 2.8 A at 240V
• Apparent power: 0.7 kVA at 240V
• Network frequency: 50-60 Hz
• Max output frequency: 599 Hz
• Switching frequency: 2-16 kHz adjustable, rated 4 kHz
• Transient overload torque: 170-200% of rated torque
• Digital inputs: 7 (including STO Safe Torque Off, 24V DC)
• Digital outputs: 3 (open collector, 0-1 kHz, 30V DC, 100 mA)
• Analog inputs: 3 (voltage, bipolar differential, current)
• Analog outputs: 1 (0-20 mA / 0-10V DC, software configurable)
• Output relays: R1 (1 NO/NC configurable), R2 (1 NO configurable)
• Communication: Modbus serial, CANopen (Slave)
• Optional fieldbus modules: EtherCAT, Profibus DP V1, Profinet, Ethernet/IP, DeviceNet, Ethernet Powerlink
• EMC filter: Class C2 integrated
• IP rating: IP20
• Form factor: Compact, wall mounting
• Dimensions (WxHxD): 72 x 143 x 109 mm
• Weight: 0.8 kg
• Power dissipation: 17.0 W (self-cooling, 200V, 4 kHz)
• Safety functions: STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safely Limited Speed)
• Integrated braking resistor: Yes
• 4-quadrant operation: Yes
• Operating position: Vertical +/- 10 degrees
• Certifications: CE, ATEX, UL, CSA, EAC, RCM, NOM, GOST, KC
• Standards: IEC 61800-5-1
• Environmental class: 3C3 and 3S2 per IEC 60721-3-3

Features and benefits:

• Compact wall-mount design with integrated Class C2 EMC filter reduces panel footprint and simplifies EMC compliance
• Multiple motor control profiles - sensorless flux vector control and U/f (2-point, 5-point, energy-saving quadratic) - for flexible speed and torque tuning across application types
• Built-in safety functions STO, SS1, and SLS enable machinery safety compliance without additional external safety relays
• Integrated braking resistor and 4-quadrant operation support controlled deceleration and dynamic braking
• Rich I/O set including 7 digital inputs (with 0-30 kHz pulse input on DI5), 3 analog inputs, and configurable relay outputs for versatile machine interfacing
• Fieldbus expansion via optional plug-in modules covers EtherCAT, Profinet, Profibus DP V1, Ethernet/IP, and DeviceNet for broad network integration

Applications:

• Small conveyors and material handling systems requiring precise single-phase variable speed control
• Compact machine tools and OEM production equipment
• Pump and fan drives in HVAC and building automation
• Industrial automation panels with fieldbus communication requirements
• Machinery requiring integrated functional safety (STO/SS1) without external safety components

Compliant with IEC 61800-5-1 and EMC immunity standards IEC 61000-4-2 through IEC 61000-4-11. Part of the Schneider Electric Altivar Machine ATV320 range.

Also known as: Schneider ATV320U02M2C, Schneider Electric ATV320U02M2C, Altivar 320 0.18kW VFD, ATV320 single-phase frequency inverter.
