Schneider ATV320U04M2C Altivar ATV320 VFD 0.37 kW 200-240V Compact

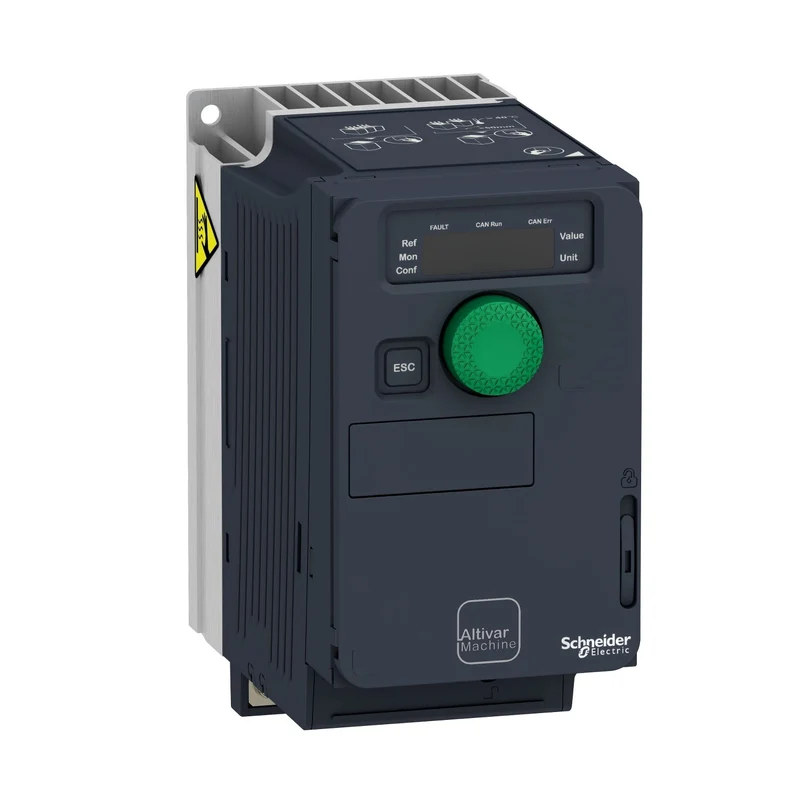

The ATV320U04M2C is a compact wall-mount variable frequency drive (VFD) from the Schneider Electric Altivar Machine ATV320 series, rated at 0.37 kW for single-phase 200-240 V supply with 3.3 A rated output current. Designed for complex machine applications, it integrates a Class C2 EMC filter, built-in braking resistor, and functional safety functions (STO, SS1) in a 72 x 143 x 128 mm enclosure.

Technical specifications:

• Commercial reference: ATV320U04M2C
• Manufacturer: Schneider Electric
• EAN: 3606480966521
• Series / range: Altivar Machine ATV320
• Product type: Variable frequency drive (VFD), compact format, wall-mount
• Motor power: 0.37 kW (demanding applications)
• Supply voltage: 200-240 V AC, single-phase, -15/+10%
• Rated output current: 3.3 A
• Network frequency: 50-60 Hz
• Apparent power: 1.2 kVA at 240 V
• Switching frequency: 2-16 kHz adjustable, nominal 4 kHz
• Maximum output frequency: 599 Hz
• I/O: 7 digital inputs, 3 digital outputs, 3 analog inputs, 1 analog output, 2 configurable output relays
• Communication: Modbus serial, CANopen slave; optional Profinet, EtherNet/IP, EtherCAT, Profibus DP V1, DeviceNet
• Safety functions: STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safely Limited Speed)
• EMC filter: Class C2, integrated
• IP protection: IP20
• Dimensions (W x H x D): 72 x 143 x 128 mm
• Weight: 1 kg
• Mounting: Wall mounting, vertical +/- 10 degrees
• Certifications: CE, ATEX, UL, CSA, EAC, RCM, NOM, GOST, KC
• Standard: IEC 61800-5-1

Features and benefits:

• Integrated Class C2 EMC filter and built-in braking resistor reduce panel component count and wiring complexity
• Multiple motor control profiles including sensorless flux vector, U/f (2 and 5 point), and energy-saving quadratic U/f for asynchronous motors
• 4-quadrant operation with automatic slip compensation (0-300% adjustable) and DC injection braking to standstill
• Expandable fieldbus connectivity via optional plug-in modules for Profinet, EtherNet/IP, EtherCAT, Profibus DP V1, and DeviceNet

Applications:

• Variable speed control in compact OEM machines and complex single-phase industrial equipment
• Fans, pumps, and conveyors powered from a single-phase 200-240 V supply
• Control panels requiring integrated functional safety (STO) without additional external safety relays

Compliant with IEC 61800-5-1 and EMC immunity standards IEC 61000-4-2 through IEC 61000-4-11. Part of the Schneider Electric Altivar Machine ATV320 range.

Also known as: Schneider ATV320U04M2C, Schneider Electric ATV320U04M2C, Altivar 320 0.37kW single-phase VFD.
