Schneider ATV320U06M2C Altivar ATV320 VFD 0.55 kW 200-240V Compact

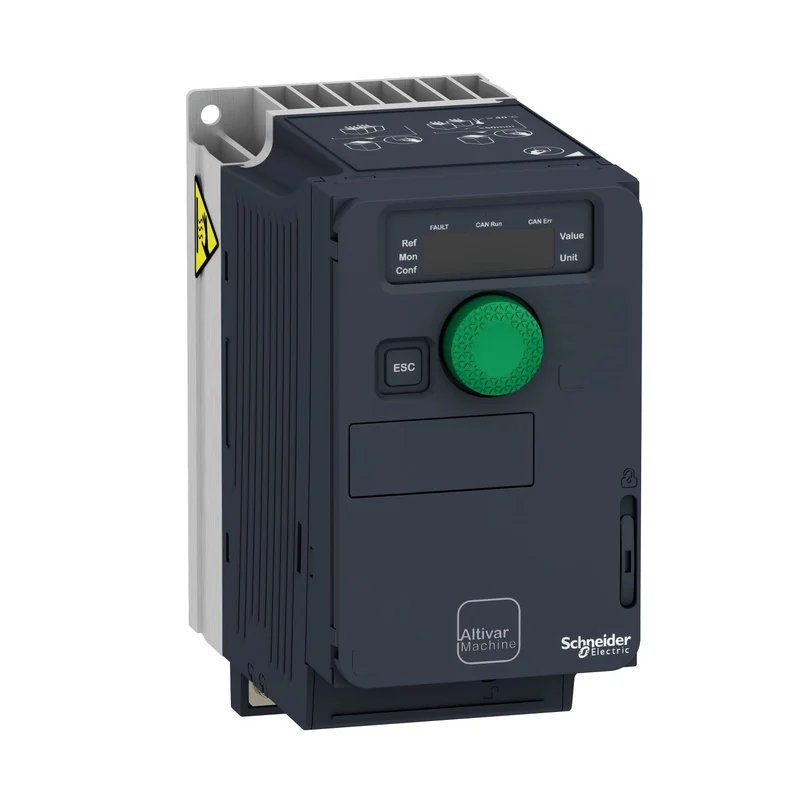

The Schneider Electric ATV320U06M2C is a compact wall-mount variable frequency drive from the Altivar Machine ATV320 series, built for demanding machine applications. It controls 0.55 kW single-phase motors from a 200-240V AC supply with a rated output current of 3.7 A. An integrated Class C2 EMC filter and built-in braking resistor are included as standard.

Technical specifications:

• Commercial reference: ATV320U06M2C
• Manufacturer: Schneider Electric
• EAN: 3606480966538
• Series / range: Altivar Machine ATV320
• Motor power: 0.55 kW
• Supply voltage: 200-240V AC, single-phase, -15/+10% tolerance
• Rated output current: 3.7 A
• Max output voltage: 240V
• Network frequency: 50-60 Hz
• Switching frequency: 2-16 kHz adjustable, rated 4 kHz
• Max output frequency: 599 Hz
• EMC filter: Class C2, integrated
• Digital inputs / outputs: 7 DI (24V DC, incl. STO; DI5 configurable as pulse input 0-30 kHz) / 3 DO (open collector, 30V DC, 100mA)
• Analog inputs / outputs: 3 AI (0-10V DC, +/-10V DC, 0-20mA) / 1 AO (0-20mA or 0-10V DC, 10-bit)
• Relay outputs: R1 (1 NO/1 NC, 3A at 250V AC), R2 (1 NO, 5A at 250V AC)
• Communication: Modbus serial, CANopen (slave)
• Safety functions: STO, SS1, SLS
• IP protection: IP20
• Mounting: Wall mount, vertical +/- 10 degrees
• Dimensions (W x H x D): 72 x 143 x 138 mm
• Weight: 1.1 kg
• Certifications: CE, ATEX, UL, CSA, EAC, RCM, NOM, GOST, KC
• Standard: IEC 61800-5-1

Features and benefits:

• Sensorless flux vector control and U/f modes (2-point and 5-point) for both asynchronous and synchronous motors
• Integrated Class C2 EMC filter and built-in braking resistor reduce external component count
• STO, SS1, and SLS safety functions for machine safety compliance per IEC 61800-5-1
• Expandable via optional communication modules: EtherCAT, Profinet, Profibus DP V1, Ethernet/IP, DeviceNet, Ethernet Powerlink
• Transient overtorque of 170-200% rated torque for demanding start and load cycles

Applications:

• Variable speed control of small motors in packaging and conveyor machinery
• Pump and fan drives in HVAC and building automation systems
• Compact OEM machine panels requiring integrated safety and fieldbus connectivity

Compliant with IEC 61800-5-1 and IEC 61000-4 series EMC standards. Part of the Schneider Electric Altivar Machine ATV320 range.

Also known as: Schneider ATV320U06M2C, Schneider Electric ATV320U06M2C, Altivar 320 0.55kW variable speed drive.
