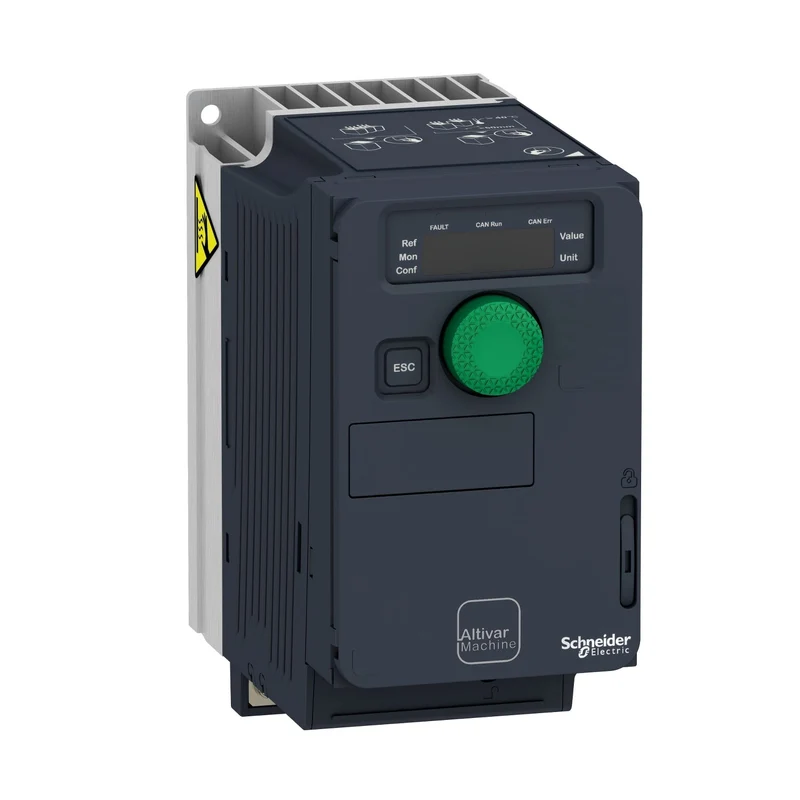

Schneider ATV320U07M2C Altivar ATV320 VFD 0.75 kW 200-240V Compact

The Schneider Electric ATV320U07M2C is a compact, wall-mount variable frequency drive from the Altivar Machine ATV320 series, rated for 0.75 kW motor power on a single-phase 200-240 V supply. With a rated output current of 4.8 A and an integrated Class C2 EMC filter, it is designed for complex and demanding machine applications.

Technical specifications:

• Commercial reference: ATV320U07M2C
• Manufacturer: Schneider Electric
• EAN: 3606480966545
• Series / range: Altivar Machine ATV320
• Product type: Variable frequency drive (VFD), compact format
• Rated supply voltage: 200-240 V, single-phase (-15%/+10%)
• Rated output current: 4.8 A
• Rated motor power: 0.75 kW (demanding applications)
• Maximum output frequency: 599 Hz
• Switching frequency: 2-16 kHz adjustable, nominal 4 kHz
• Network frequency: 50-60 Hz
• Digital inputs: 7 (DI1-DI6 at 24 V DC; STO Safe Torque Off; DI5 configurable as pulse input 0-30 kHz)
• Digital outputs: 3 open collector, 30 V DC, 100 mA
• Analog inputs: 3 (AI1: 0-10 V DC; AI2: +/-10 V DC bipolar differential; AI3: 0-20 mA)
• Analog output: 1 (AQ1: 0-20 mA or 0-10 V DC, software-configurable)
• Communication: Modbus serial, CANopen (integrated); optional modules for EtherCAT, Profibus DP V1, Profinet, Ethernet/IP, DeviceNet, Ethernet Powerlink
• Safety functions: STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safely Limited Speed)
• IP protection rating: IP20
• Mounting: Wall mount, vertical operating position +/-10 degrees
• Power dissipation: 45 W at 200 V, 4 kHz switching frequency (self-cooling)
• Dimensions (W x H x D): 72 x 143 x 138 mm
• Weight: 1.1 kg
• Certifications: CE, ATEX, UL, CSA, EAC, RCM, KC, NOM, GOST
• Standard: IEC 61800-5-1

Features and benefits:

• Four-quadrant operation with transient overtorque of 170-200% of rated torque for demanding load profiles
• Multiple motor control profiles including sensorless flux vector control and U/f (2-point and 5-point) for both asynchronous and synchronous motors
• Integrated Class C2 EMC filter and braking resistor reduce the need for external components
• Built-in STO, SS1, and SLS safety functions for machine safety applications
• Wide fieldbus compatibility with native Modbus and CANopen, expandable via optional communication modules

Applications:

• Variable speed motor control in complex industrial machines and production equipment
• Conveyor systems, pumps, and fans requiring precise speed adjustment
• Compact automation panels where integrated safety functions and fieldbus connectivity are required
• Machinery with dynamic braking requirements using the integrated braking resistor

Compliant with IEC 61800-5-1 and electromagnetic compatibility standards IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, and IEC 61000-4-11. Part of the Schneider Electric Altivar Machine ATV320 range.

Also known as: Schneider ATV320U07M2C, Schneider Electric ATV320U07M2C, Altivar 320 VFD 0.75 kW, ATV320 frequency inverter.
