Schneider ATV320U11M2C Altivar ATV320 VFD 1.1 kW 200-240V Compact

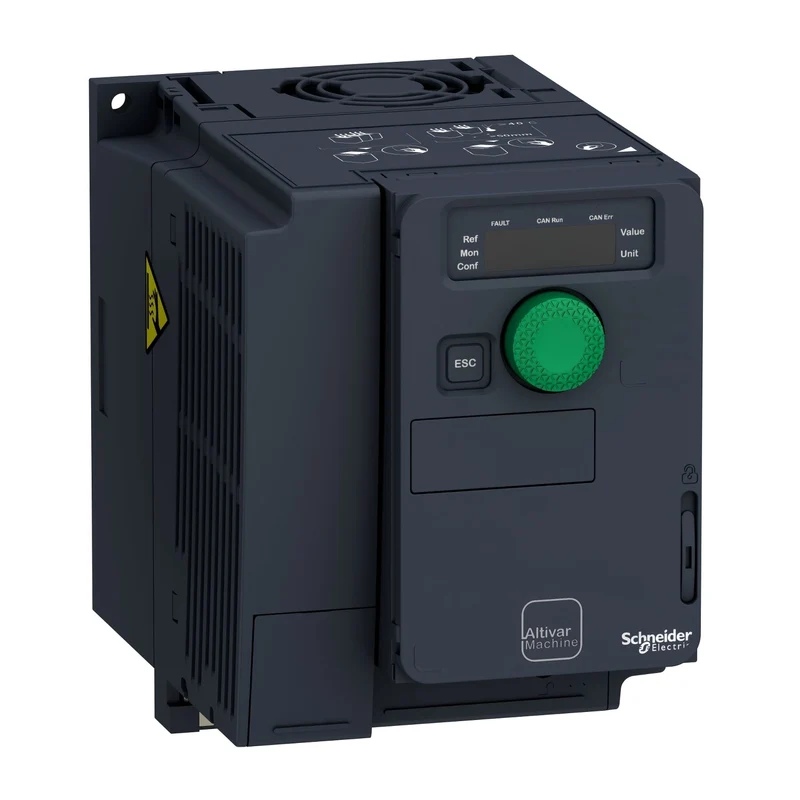

The Schneider Electric ATV320U11M2C is a variable frequency drive (VFD) from the Altivar Machine ATV320 series, rated at 1.1 kW for single-phase 200-240 V supply. Designed for complex machine applications, this compact wall-mount drive features an integrated Class C2 EMC filter and supports multiple motor control profiles including sensorless flux vector control.

Technical specifications:

• Commercial reference: ATV320U11M2C
• Manufacturer: Schneider Electric
• EAN: 3606480966552
• Series / range: Altivar Machine ATV320
• Product type: Variable frequency drive
• Motor power: 1.1 kW (demanding applications)
• Supply voltage: 200-240 V single-phase (-15/+10%)
• Rated output current: 6.9 A
• Maximum input current: 13.7 A
• Maximum output voltage: 240 V
• Apparent power: 2.8 kVA at 240 V
• Network frequency: 50-60 Hz
• Switching frequency: 2-16 kHz (adjustable), rated 4 kHz
• Maximum output frequency: 0.599 kHz
• Transient overtorque: 170-200% of rated torque
• Digital inputs: 7 (including STO, DI1-DI6 at 24 V DC; DI5 configurable as pulse input 0-30 kHz)
• Digital outputs: 3 (open collector, 0-1 kHz, 30 V DC, 100 mA)
• Analog inputs: 3 (AI1: 0-10 V DC; AI2: +/-10 V DC bipolar differential; AI3: 0-20 mA)
• Analog output: 1 (software-configurable 0-20 mA or 0-10 V DC)
• Communication: Modbus serial, CANopen (slave)
• IP protection rating: IP20
• Dimensions (W x H x D): 105 x 142 x 158 mm
• Weight: 1.6 kg
• Mounting: Wall mount, vertical +/- 10 degrees
• Integrated braking resistor: Yes
• Safety functions: STO, SS1, SLS
• Certifications: CE, ATEX, UL, CSA, EAC, RCM, NOM, GOST, KC
• Standard: IEC 61800-5-1

Features and benefits:

• Integrated Class C2 EMC filter eliminates the need for an external filter in many installations
• Sensorless flux vector control and U/f control profiles (2-point and 5-point) support a wide range of asynchronous and synchronous motor types
• Built-in braking resistor enables fast deceleration without external components
• Optional communication modules available for EtherCAT, Profibus DP V1, Profinet, Ethernet/IP, Ethernet Powerlink, and DeviceNet
• Safety functions STO and SS1 support machine safety requirements; SLS (Safely Limited Speed) also available
• 4-quadrant operation capability supports both motoring and regenerative braking applications

Applications:

• Speed control of single-phase powered machinery in compact machine designs
• Complex machine automation requiring precise motor speed and torque regulation
• Industrial equipment where wall-mount compact installation space is limited
• Machines requiring functional safety (STO/SS1) without additional external safety devices

Compliant with IEC 61800-5-1 and IEC 61000-4 series EMC immunity standards. Part of the Schneider Electric Altivar Machine ATV320 range.

Also known as: Schneider ATV320U11M2C, Schneider Electric ATV320U11M2C, Altivar 320 1.1kW VFD, ATV320 single-phase variable speed drive.
