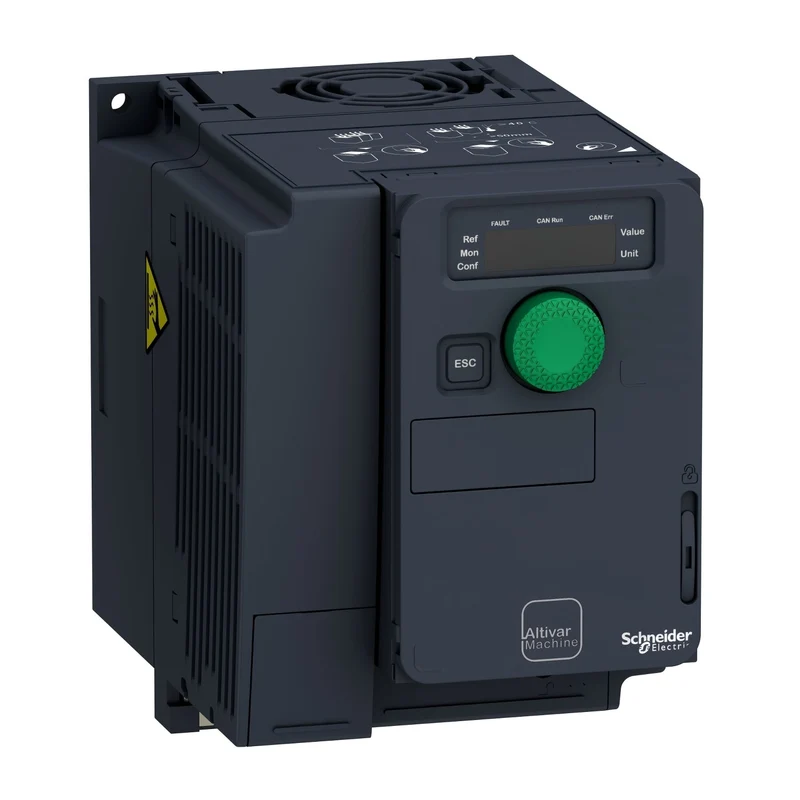

Schneider ATV320U15M2C Altivar ATV320 VFD 1.5 kW 200-240V Compact

The Schneider Electric ATV320U15M2C is a compact variable frequency drive (VFD) from the Altivar Machine ATV320 series, rated at 1.5 kW for single-phase supplies of 200 to 240 V. Designed for complex machine applications, it integrates a Class C2 EMC filter and an onboard braking resistor in a wall-mount compact format.

Technical specifications:

• Commercial reference: ATV320U15M2C
• Manufacturer: Schneider Electric
• EAN: 3606480966569
• Series / range: Altivar Machine ATV320
• Product type: Variable frequency drive
• Motor power: 1.5 kW
• Supply voltage: 200...240 V (-15%...+10%), single-phase
• Rated output current: 8.0 A
• Maximum output voltage: 240 V
• Network frequency: 50...60 Hz
• Switching frequency: 2...16 kHz adjustable, rated 4 kHz
• Maximum output frequency: 599 Hz
• Digital inputs: 7 (24 V DC, including STO input; DI5 configurable as pulse input 0...30 kHz)
• Digital outputs: 3 (open collector, 30 V DC, 100 mA)
• Analog inputs: 3 (AI1: 0...10 V DC; AI2: +/-10 V DC bipolar differential; AI3: 0...20 mA)
• Analog outputs: 1 (AQ1: 0...20 mA or 0...10 V DC, software-configurable)
• Communication: Modbus serial, CANopen (built-in)
• Optional communication modules: EtherCAT, Profibus DP V1, Profinet, Ethernet Powerlink, Ethernet/IP, DeviceNet
• EMC filter: Class C2, integrated
• IP protection rating: IP20
• Mounting: Wall mounting, vertical +/-10 degrees
• Dimensions (W x H x D): 105 x 142 x 158 mm
• Weight: 1.6 kg
• Certifications: CE, ATEX, EAC, RCM, KC, NOM, GOST
• Standard: IEC 61800-5-1

Features and benefits:

• Integrated Class C2 EMC filter and braking resistor reduce external component count and simplify panel installation.
• Multiple motor control profiles - V/f (2- or 5-point), sensorless flux vector control, and energy-saving modes - suit a wide range of asynchronous and synchronous motors.
• Built-in safety functions STO, SS1, and SLS support functional safety requirements without external modules.
• 4-quadrant operation with transient overtorque of 170...200% of rated torque handles demanding machine dynamics.
• Flexible I/O with 7 digital inputs, 3 analog inputs, and a configurable analog output enables precise closed-loop process control.

Applications:

• Variable speed motor control for 1.5 kW motors on single-phase supplies in light industrial environments.
• OEM machine builders requiring compact drives with integrated functional safety (STO/SS1/SLS).
• Industrial automation panels networked via Modbus, CANopen, or optional fieldbus modules.
• Energy-saving control of pumps, fans, and conveyor systems.

Compliant with IEC 61800-5-1 and the IEC 61000-4 series EMC immunity standards. Part of the Schneider Electric Altivar Machine ATV320 range.

Also known as: Schneider ATV320U15M2C, Schneider Electric ATV320U15M2C, Altivar 320 1.5 kW single-phase VFD, ATV320 frequency inverter.
