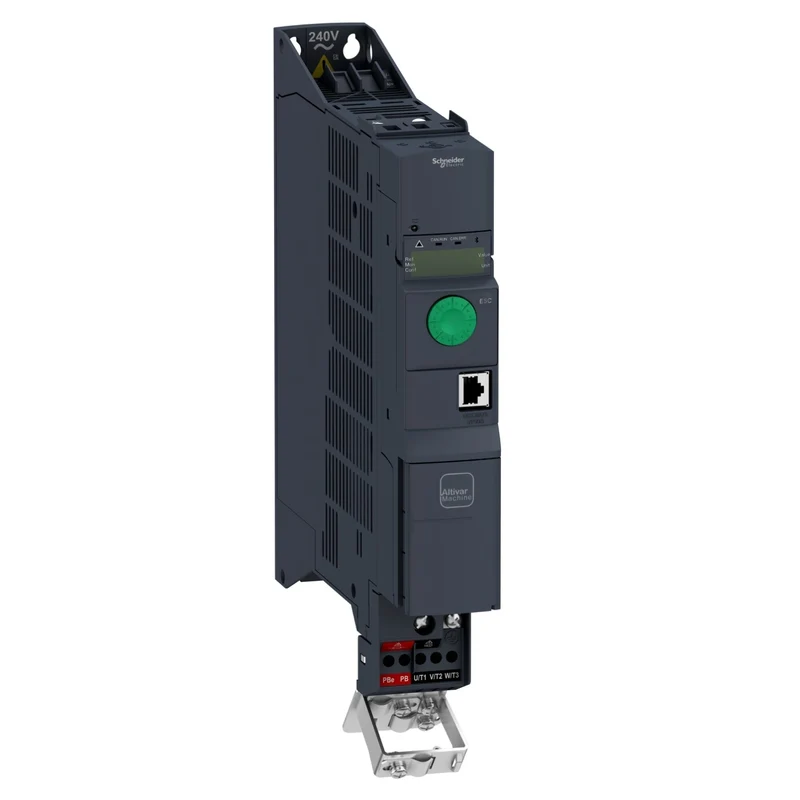

Schneider ATV320U15N4B Altivar Machine ATV320 VFD 1.5 kW 380-500V 3 phase Book

The Schneider Electric ATV320U15N4B is a 1.5 kW variable frequency drive from the Altivar Machine ATV320 series, designed for complex machine applications. It accepts a 380-500V three-phase supply and delivers a rated output current of 4.1 A. The book format integrates a Class C2 EMC filter and is intended for panel or enclosure mounting.

Technical specifications:

• Commercial reference: ATV320U15N4B
• Manufacturer: Schneider Electric
• EAN: 3606480931253
• Series / range: Altivar Machine ATV320
• Motor power: 1.5 kW
• Supply voltage: 380...500V (-15%/+10%), 3-phase
• Rated output current: 4.1 A
• Maximum output voltage: 500V
• Line current: 6.5A at 380V / 4.9A at 500V
• Network frequency: 50...60 Hz
• Switching frequency: 2...16 kHz adjustable (rated 4 kHz)
• Transient overtorque: 170...200% of rated torque
• EMC filter: Class C2 integrated
• IP rating: IP20
• Drive format: Book format
• Mounting: Panel/enclosure mounting
• Operating position: Vertical +/- 10 degrees
• Digital inputs: 7 (including STO, 24V DC; DI5 configurable as pulse input 0...30 kHz)
• Digital outputs: 3 (open collector, 30V DC, 100 mA)
• Analog inputs: 3 (AI1: 0...10V DC; AI2: +/-10V DC differential; AI3: 0...20mA)
• Analog outputs: 1 (0...20mA or 0...10V DC, software configurable)
• Communication: Modbus serial, CANopen (slave)
• Safety functions: STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safely Limited Speed)
• Dimensions (W x H x D): 45 x 325 x 245 mm
• Weight: 2.5 kg
• Certifications: CE, ATEX, UL, CSA, EAC, RCM, NOM, GOST, KC
• Standard: IEC 61800-5-1

Features and benefits:

• Integrated Class C2 EMC filter reduces external component requirements in most installations
• Multiple asynchronous motor control modes: sensorless flux vector control, V/f (2-point and 5-point), and Energy Saving variants; sensorless vector control also available for synchronous motors
• Built-in STO, SS1, and SLS safety functions support safe machine integration without additional external safety relays
• Integrated braking resistor and DC injection braking enable controlled deceleration on demanding loads
• Optional communication modules available for EtherCAT, Profibus DP V1, Profinet, Ethernet/IP, DeviceNet, and Ethernet Powerlink

Applications:

• Variable speed control of conveyors and handling machinery in industrial automation panels
• Pump and fan speed regulation in HVAC and process engineering systems
• Packaging and textile machinery requiring precise torque and speed control with integrated safety

Compliant with IEC 61800-5-1 and IEC 61000-4 series EMC standards. Part of the Schneider Electric Altivar Machine ATV320 range.

Also known as: Schneider ATV320U15N4B, Schneider Electric ATV320U15N4B, Altivar Machine ATV320 1.5kW variable speed drive, ATV320 VFD 1.5kW.
