Schneider ATV320U22M2C Altivar ATV320 VFD 2.2 kW 200-240V Compact

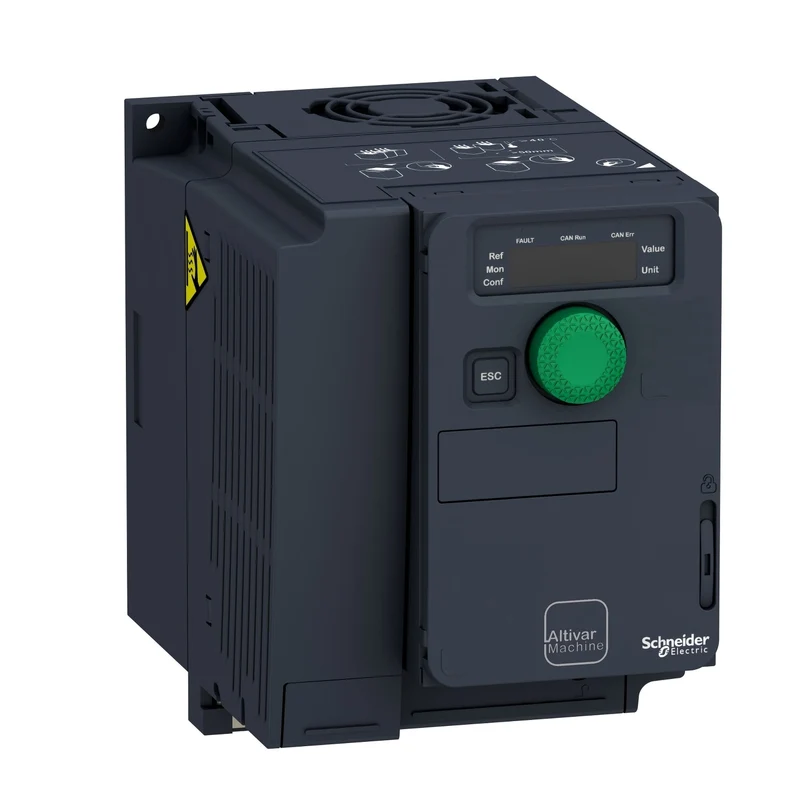

The Schneider Electric ATV320U22M2C is a variable frequency drive from the Altivar Machine ATV320 series, rated at 2.2 kW for single-phase 200-240 V supply. This compact wall-mounted drive delivers precise motor speed control with an integrated Class C2 EMC filter and a rated output current of 11.0 A, designed for complex machine applications.

Technical specifications:

• Commercial reference: ATV320U22M2C
• Manufacturer: Schneider Electric
• EAN: 3606480966576
• Series / range: Altivar Machine ATV320
• Motor power: 2.2 kW (demanding applications)
• Supply voltage: 200-240 V single-phase (-15...+10%)
• Rated output current: 11.0 A
• Max input current: 24.0 A
• Max output voltage: 240 V
• Network frequency: 50-60 Hz
• Max output frequency: 599 Hz
• Switching frequency: 2-16 kHz adjustable (nominal 4 kHz)
• EMC filter: Class C2 integrated
• IP protection: IP20
• Digital inputs: 7 (including STO safety input, 24 V DC)
• Digital outputs: 3 (open collector, 0-1 kHz, 30 V DC, 100 mA)
• Analog inputs: 3 (voltage and current configurable)
• Analog outputs: 1 (voltage/current software-configurable)
• Communication: Modbus serial, CANopen (slave)
• Safety functions: STO, SS1, SLS
• Dimensions (WxHxD): 105 x 142 x 158 mm
• Weight: 1.6 kg
• Mounting: Wall mounting, vertical +/- 10 degrees
• Certifications: CE, ATEX, EAC, RCM, KC, NOM, GOST
• Standard: IEC 61800-5-1

Features and benefits:

• Integrated Class C2 EMC filter reduces need for external filtering components
• Built-in braking resistor enables controlled motor deceleration without an external braking unit
• Multiple motor control profiles including sensorless flux vector, U/f (2-point and 5-point), and energy-saving modes for asynchronous and synchronous motors
• 4-quadrant operation with transient overtorque of 170-200% of rated torque
• Integrated functional safety: STO and SS1 as standard, SLS supported
• Expandable fieldbus connectivity via optional modules: EtherCAT, Profibus DP V1, Profinet, Ethernet/IP, and DeviceNet

Applications:

• Variable speed control for motors on complex industrial and packaging machines
• Conveyors, pumps, fans, and compressors requiring precise speed regulation
• Textile and food processing machinery with demanding torque profiles
• Material handling and hoisting systems benefiting from integrated braking

Compliant with IEC 61800-5-1 and tested to IEC 61000-4 series EMC standards. Part of the Schneider Electric Altivar Machine ATV320 range.

Also known as: Schneider ATV320U22M2C, Schneider Electric ATV320U22M2C, Altivar 320 2.2 kW VFD, ATV320 frequency inverter.
