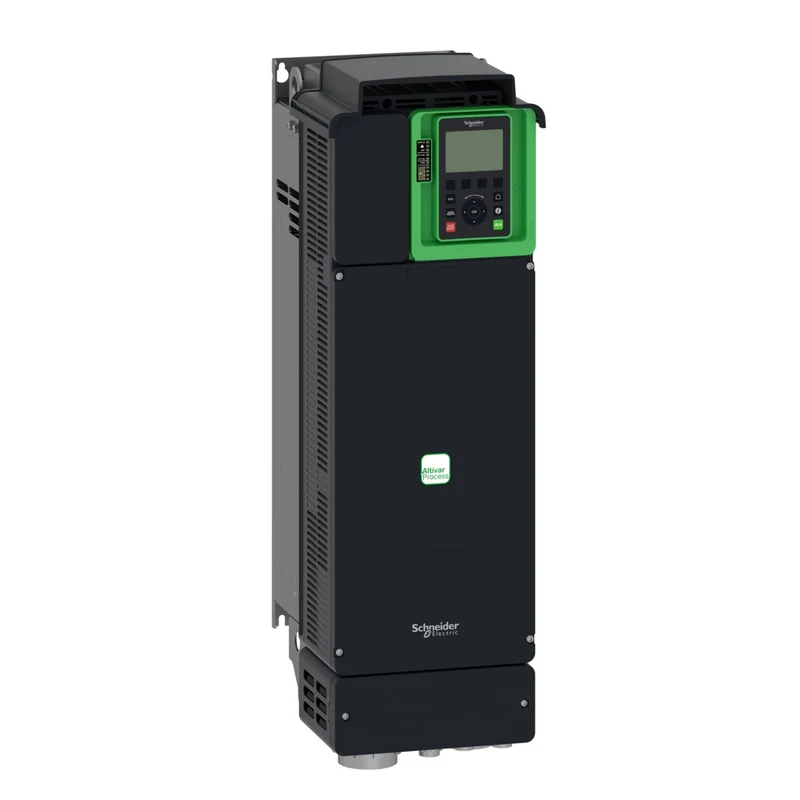

Schneider ATV630D30N4 Altivar Process ATV630 VFD 30 kW 380-480V IP21

The Schneider Electric ATV630D30N4 is a variable frequency drive from the Altivar Process ATV600 range, rated 30 kW / 40 HP (normal duty) on a 380...480V three-phase supply. It controls asynchronous and synchronous motors for process and utility applications, with integrated EMC filtering and STO SIL 3 safety.

Technical specifications:

• Commercial reference: ATV630D30N4
• Manufacturer: Schneider Electric
• EAN: 3606480701412
• Series / range: Altivar Process ATV600
• Motor power: 30 kW / 40 HP (normal duty); 22 kW / 30 HP (heavy duty)
• Supply voltage: 380...480V AC (-15...+10%), 50...60 Hz, three-phase
• Continuous output current: 61.5A at 4 kHz (normal duty); 46.3A at 4 kHz (heavy duty)
• Output frequency: 0.1...500 Hz
• Switching frequency: 2...12 kHz adjustable
• Line short-circuit current (Isc): 50 kA
• IP protection: IP21 (IEC 60529, IEC 61800-5-1)
• Enclosure: UL Type 1 (UL 508C)
• Safety function: STO (Safe Torque Off) SIL 3
• Communication: Ethernet, Modbus TCP, RS485
• Mounting: Wall mounting
• Dimensions (WxHxD): 226 x 673 x 271 mm
• Weight: 28 kg

Features and benefits:

• Supports variable torque, optimum torque, and constant torque control profiles for asynchronous motors; permanent magnet and synchronous reluctance motor profiles also supported.
• Integrated EMC filter rated for 50 m motor cable (IEC 61800-3 Category C2) and 150 m motor cable (Category C3).
• Comprehensive protection: motor thermal, overcurrent, overvoltage, phase loss, DC bus overvoltage, and drive short-circuit protection.
• Expandable via Slot A communication modules: Profibus DP V1, Profinet, DeviceNet, CANopen, EtherNet/IP.

Applications:

• Pump, fan, and compressor speed control in water and wastewater utilities.
• HVAC and building services systems with asynchronous or permanent magnet motors.
• Industrial automation panels requiring fieldbus integration and STO SIL 3 functional safety.

Compliant with IEC 61800-3, IEC 61800-5-1, IEC 60529, and UL 508C. Part of the Schneider Electric Altivar Process ATV600 range.

Also known as: Schneider ATV630D30N4, Schneider Electric ATV630D30N4, Altivar 630 30 kW VFD, ATV630 variable speed drive.
