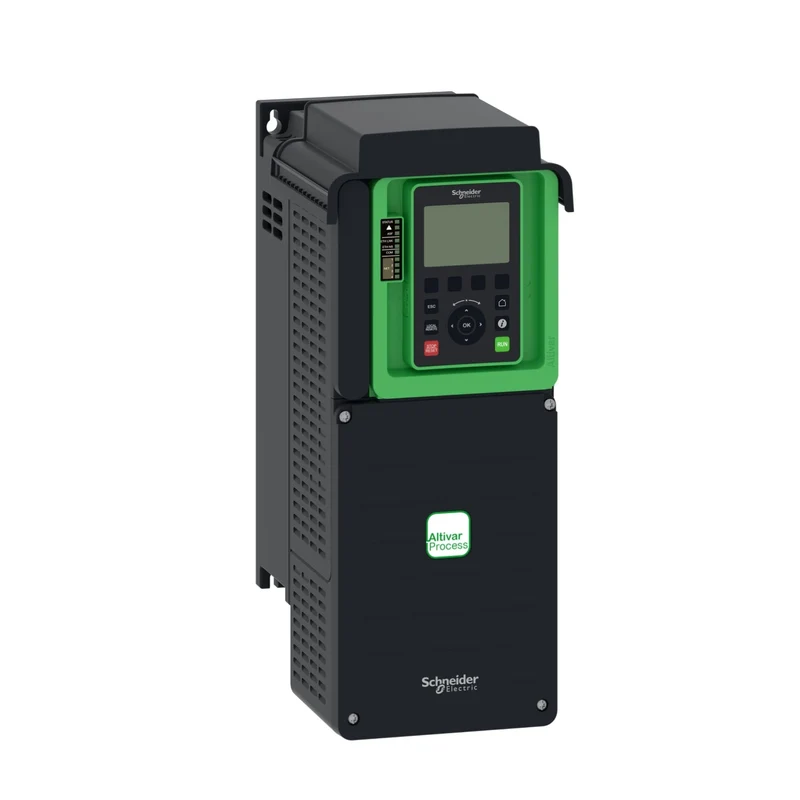

Schneider ATV630U75N4 Altivar Process ATV630 VFD 7.5 kW 380-480V IP21

The Schneider Electric ATV630U75N4 is a variable frequency drive (VFD) from the Altivar Process ATV630 series, rated for 7.5 kW (10 hp) on a 380-480 V three-phase supply with IP21 enclosure protection. Designed for process and utility applications, it supports both asynchronous and synchronous motors with an integrated EMC filter and SIL 3 Safe Torque Off safety function.

Technical specifications:

• Commercial reference: ATV630U75N4
• Manufacturer: Schneider Electric
• EAN: 3606480758157
• Series / range: Altivar Process ATV630 (ATV600)
• Motor power: 7.5 kW / 10 hp (normal duty); 5.5 kW / 7.5 hp (heavy duty)
• Supply voltage: 380...480 V AC, -15% / +10%
• Supply frequency: 50...60 Hz
• Continuous output current: 16.5 A at 4 kHz (normal duty); 12.7 A at 4 kHz (heavy duty)
• Line current: 13.8 A at 380 V / 11.9 A at 480 V (normal duty)
• Short circuit current rating (Isc): 50 kA
• Output frequency range: 0.1...500 Hz
• Switching frequency: 2...12 kHz adjustable
• IP protection: IP21 per IEC 60529 / IEC 61800-5-1
• UL rating: UL Type 1 per UL 508C
• Safety function: STO (Safe Torque Off) SIL 3
• Communication: Ethernet, Modbus TCP, Modbus serial RS 485
• Digital inputs: 8
• Analog inputs: 3 (software-selectable 0...10 V DC / 0...20 mA, 12-bit resolution)
• Relay outputs: R1 (250 V AC / 3 A), R2, R3 (250 V AC / 5 A)
• Cooling: Forced air (fan)
• Mounting: Wall mounting
• Dimensions (W x H x D): 171 x 409 x 233 mm
• Weight: 7.7 kg
• EMC filter: Integrated, 50 m cable IEC 61800-3 category C2 / 150 m cable category C3

Features and benefits:

• Integrated EMC filter rated for motor cables up to 150 m, eliminating the need for an external filter
• STO safety function certified to SIL 3 for compliance with machine safety requirements
• Supports variable torque, optimum torque, constant torque, permanent magnet motor, and synchronous reluctance motor control profiles
• Expansion slot accepts optional communication modules including Profibus DP V1, Profinet, DeviceNet, EtherNet/IP, and CANopen
• Acceleration and deceleration ramps independently adjustable from 0.01 to 9999 s

Applications:

• Pumping and water treatment systems in utility and municipal installations
• HVAC fan and compressor speed control in commercial and industrial buildings
• Conveyor and process line drives requiring variable or constant torque
• Industrial automation panels with fieldbus integration via optional communication modules

Compliant with IEC 61800-5-1, IEC 60529, IEC 61800-3, and UL 508C. Part of the Schneider Electric Altivar Process ATV630 series.

Also known as: Schneider ATV630U75N4, Schneider Electric ATV630U75N4, Altivar Process 7.5 kW VFD, ATV630 AC drive 380V.
