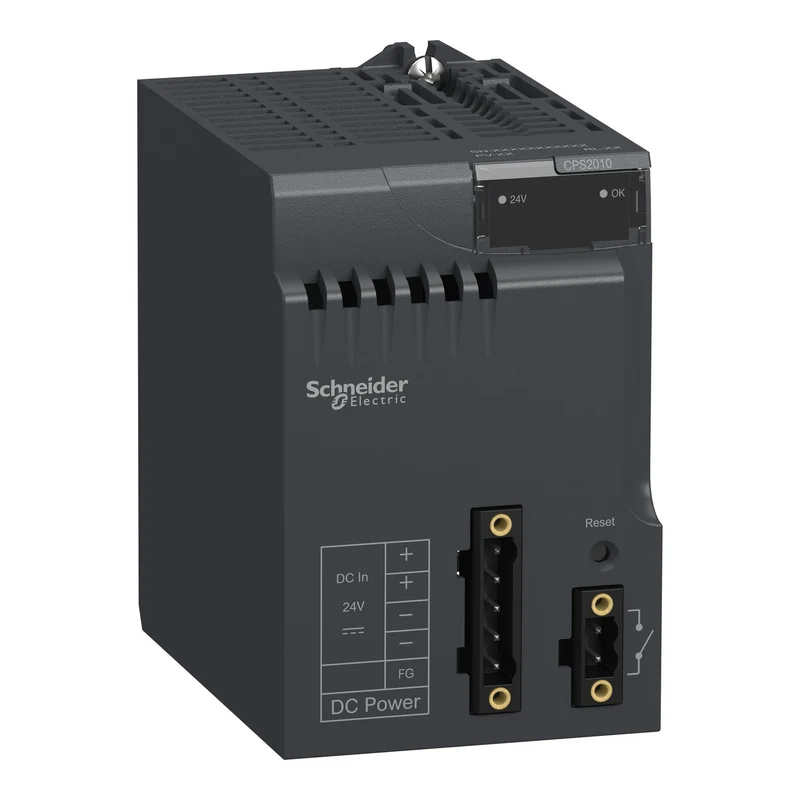

Schneider BMXCPS2010 Power Supply Module, Modicon X80 24V AC 16,8W

The BMXCPS2010 is a 24V DC isolated power supply module from Schneider Electric's Modicon X80 series. It delivers 16.8 W at 24V DC for I/O modules and processor, plus 8.3 W at 3.3V DC for I/O modules, accepting a primary input range of 18 to 31.2V DC.

Technical specifications:

• Commercial reference: BMXCPS2010
• Manufacturer: Schneider Electric
• EAN: 3595863909005
• Series / range: Modicon X80
• Product type: Power supply module
• Primary voltage: 24V DC (isolated), input range 18-31.2V
• Secondary power: 16.8 W at 24V DC (I/O modules and processor); 8.3 W at 3.3V DC (I/O modules)
• Output current: 0.7 A at 24V DC; 2.5 A at 3.3V DC
• Input current: 1 A at 24V; inrush current: 30 A at 24V
• Max power dissipation: 8.5 W
• MTBF: 4,886,000 hours
• Protection: internal non-accessible fuse (primary circuit); overload, overvoltage, and short-circuit protection (secondary 24V sensor supply)
• Insulation resistance: >= 10 MOhm (primary/ground and primary/secondary)
• Dielectric strength: 1500V (primary/ground and primary/secondary)
• Micro-interruption resistance: 1 ms; vibration: 3 gn; shock: 30 gn
• IP rating: IP20
• Operating temperature: 0 to 60 °C; storage: -40 to 85 °C
• Relative humidity: 5-95% at 55 °C (non-condensing)
• Operating altitude: up to 2000 m; 2000-5000 m with derating
• Status indicator: 1 green LED (rack power OK)
• Control: RESET button (cold restart)
• Connections: 1 x 2-pin alarm relay connector; 1 x 5-pin connector (line supply, ground, 24V DC sensor input)
• Max cable length: 20 m (1.5 mm² copper); 30 m (2.5 mm² copper)
• Weight: 0.29 kg
• Directives: 2014/35/EU (Low Voltage); 2014/30/EU (EMC)

Features and benefits:

• MTBF of 4,886,000 hours for high availability in continuous industrial operation
• Multi-layer secondary protection - overload, overvoltage, and short-circuit safeguards for the 24V sensor supply
• Wide input tolerance (18-31.2V DC) accommodates standard 24V DC supply variations
• 1 ms micro-interruption resistance maintains rack stability during brief supply dips
• Green LED status indicator and RESET cold-restart button enable fast monitoring and system recovery

Applications:

• Powering Modicon X80 I/O modules and processors in PLC-based automation systems
• Machine and process control cabinets built on Schneider Electric Modicon platforms
• Distributed I/O stations in factory automation and industrial process control
• Industrial control panels requiring compact 24V DC power with integrated circuit protection

Compliant with 2014/35/EU (Low Voltage Directive) and 2014/30/EU (EMC Directive). Part of the Schneider Electric Modicon X80 range.

Also known as: Schneider BMXCPS2010, Schneider Electric BMXCPS2010, Modicon X80 power supply module, X80 DC PSU.
