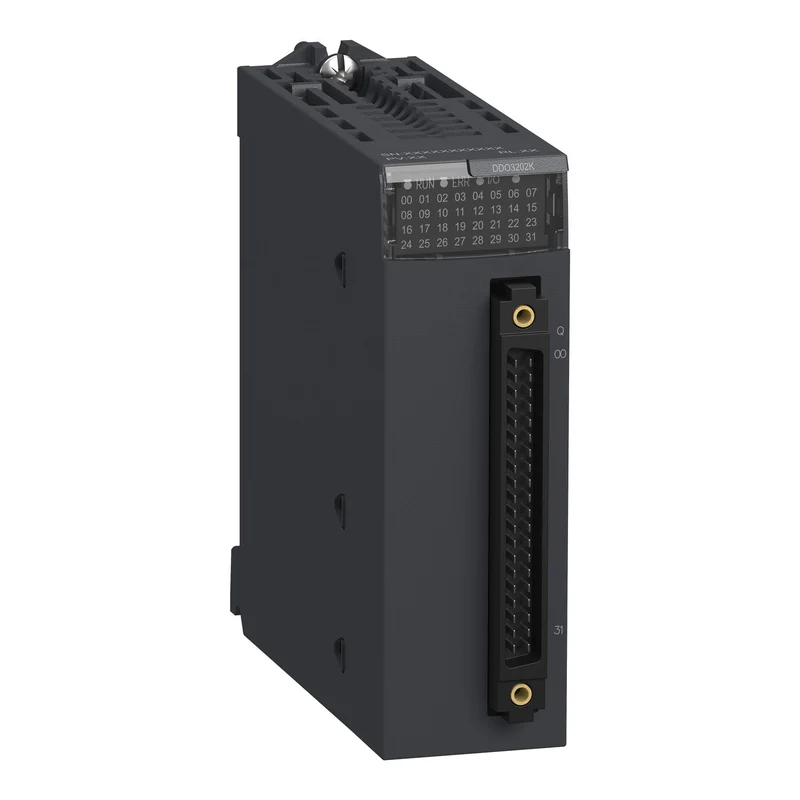

Schneider BMXDDO3202K Discrete Ooutput Module, Modicon X80, 32 Outputs 24VDC Pos

The BMXDDO3202K is a Schneider Electric digital output module from the Modicon X80 series, providing 32 transistor outputs at 24 V DC with positive logic. Rated at 0.125 A per channel and 3.2 A per module, it achieves a 1.2 ms output response time for reliable, high-density discrete control in industrial automation applications.

Technical specifications:

• Commercial reference: BMXDDO3202K
• Manufacturer: Schneider Electric
• EAN: 3595863910476
• Series / range: Modicon X80
• Product type: Digital output module
• Number of digital outputs: 32 (EN/IEC 61131-2)
• Output type: Transistor, positive logic
• Output voltage: 24 V DC (19...30 V)
• Current per channel / module: 0.125 A / 3.2 A
• Maximum leakage current: 0.1 mA (state 0)
• Output response time: 1.2 ms
• Power dissipation: 3.6 W
• MTBF: 290,000 hours
• Protection: Overload (current limiting, 0.125 A - 0.185 A), overvoltage (TVS diode), short-circuit (2 A external fuse), reverse polarity (inverse diode)
• Dielectric strength: 1500 V AC output/ground (1 min); 500 V DC between channel groups (1 min)
• IP protection rating: IP20
• Operating temperature: 0...60°C
• Storage temperature: -40...85°C
• Relative humidity: 5...95% at 55°C (non-condensing)
• Weight: 0.11 kg

Features and benefits:

• 32 transistor outputs in a single module enable high-density discrete control with minimal panel space
• Multi-layer output protection: TVS overvoltage diode, current-limiting overload circuit, and 2 A external fuse
• Per-channel green LED diagnostics plus module-level RUN/ERR status indicators for fast fault isolation
• Supports parallel connection of up to 3 outputs for increased load capacity
• MTBF of 290,000 hours for sustained reliability in continuous industrial operation

Applications:

• High-density digital output control within Modicon M340/X80 PLC-based automation systems
• Driving actuators, solenoid valves, and relays in industrial control panels
• Process sequencing and machine control in manufacturing and assembly lines

Compliant with EN/IEC 61131-2, directives 2014/35/EU (Low Voltage) and 2014/30/EU (EMC). Part of the Schneider Electric Modicon X80 range.

Also known as: Schneider BMXDDO3202K, Schneider Electric BMXDDO3202K, Modicon X80 digital output module, M340 transistor output module.
