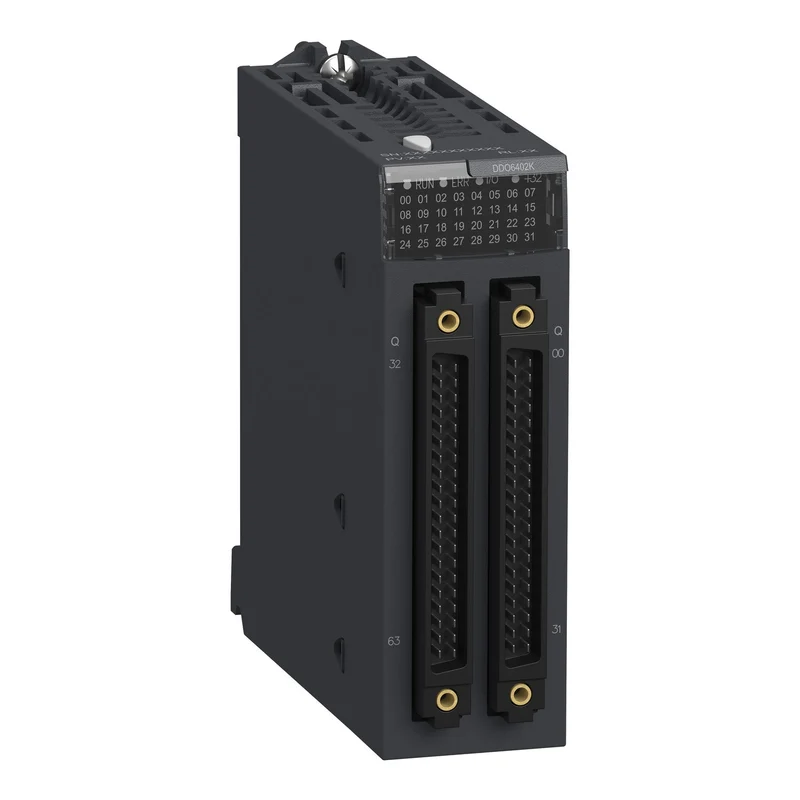

Schneider BMXDDO6402K Discrete Output Module X80, 64 Outputs, Solid State, 24VDC

The Schneider Electric BMXDDO6402K is a 64-channel transistor digital output module for the Modicon X80 (M340) platform, delivering positive logic control at 24V DC. With a per-channel current of 0.125A and a module-level maximum of 6.4A, it is built for high-density solid-state output applications in industrial automation systems.

Technical specifications:

• Commercial reference: BMXDDO6402K
• Manufacturer: Schneider Electric
• EAN: 3595863910490
• Series / range: Modicon X80
• Product type: Digital output module
• Number of digital outputs: 64 (per EN/IEC 61131-2)
• Output type: Transistor (solid state)
• Output logic: Positive
• Output voltage: 24V DC (19...30V DC range)
• Current per channel: 0.125A
• Maximum current per module: 6.4A
• Output response time: 1.2 ms
• Power dissipation: 6.85W
• Typical current consumption: 160mA at 3.3V DC
• Insulation resistance: >10 MOhm at 500V DC
• Dielectric strength: 1500V AC at 50/60Hz (output/ground); 1500V AC at 50/60Hz (output/internal electronics); 500V DC between channel groups
• Ohmic load impedance: >= 220 Ohm
• Maximum tungsten load: 1.2W
• Maximum overload time: 15 ms
• Parallel output connection: Yes, 3 maximum
• MTBF: 150,000 hours
• IP protection: IP20
• Operating temperature: 0...60°C
• Storage temperature: -40...85°C
• Relative humidity: 5...95% at 55°C, non-condensing
• Vibration resistance: 3 gn
• Shock resistance: 30 gn
• Operating altitude: up to 2000m; 2000...5000m with derating
• Product weight: 0.15 kg
• Compliance: 2014/35/EU (Low Voltage Directive), 2014/30/EU (EMC Directive)
• Warranty: 18 months

Features and benefits:

• 64 solid-state transistor outputs in a single module for high-density digital control
• Electronic overload protection with current limiting (threshold: 0.125A to 0.185A) and 15 ms maximum overload time
• TVS diode overvoltage protection per output channel
• Reverse polarity protection via inverse diode; short circuit protection via 2A external fuse
• Voltage detection threshold monitoring: error flagged below 14V DC, state 0 preload above 18V DC
• Per-channel green LED diagnostics plus dedicated RUN and ERR module status indicators

Applications:

• High-density digital output control in Modicon M340 PLC-based automation systems
• Machine control panels requiring solid-state transistor output modules
• Actuator and relay driving in manufacturing and process automation lines
• Industrial control cabinets with 24V DC field device interfaces
• Infrastructure and building automation systems integrated with Modicon X80 I/O platforms

Compliant with EN/IEC 61131-2. Meets EU directives 2014/35/EU and 2014/30/EU. Part of the Schneider Electric Modicon X80 range.

Also known as: Schneider BMXDDO6402K, Schneider Electric BMXDDO6402K, Modicon M340 64-output transistor module, X80 digital output module 24V DC.
