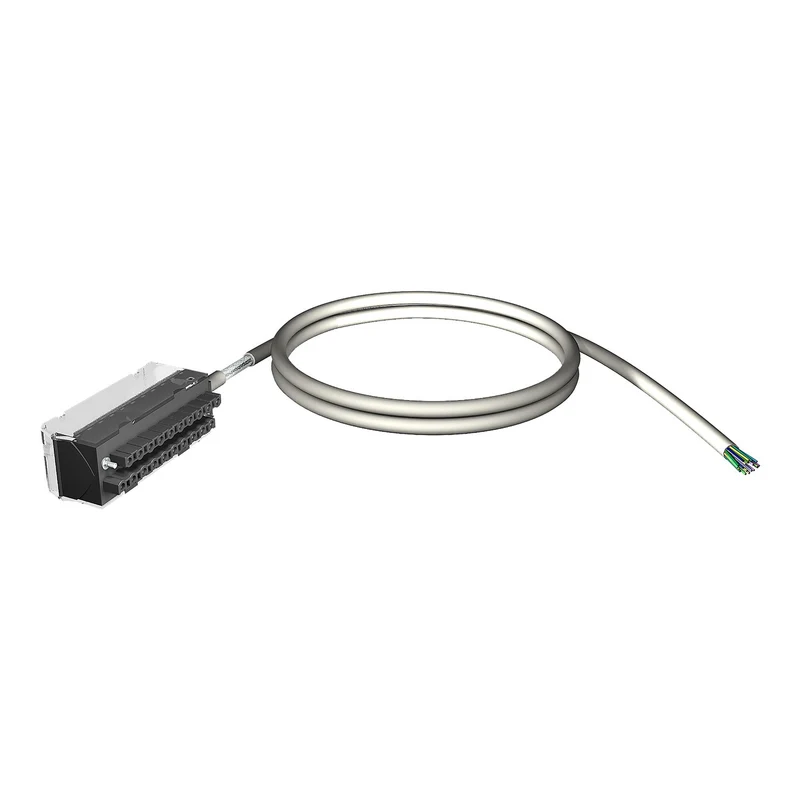

Schneider BMXFTW308S Shielded Cable Set, Modicon X80, 28 Way Terminal 3m

The Schneider Electric BMXFTW308S is a shielded prefabricated cable set for the Modicon X80 range, featuring a 28-pin removable connector on the module side and free-end colored wires on the other, simplifying analog I/O wiring for Modicon M340 systems. The 3 m cable length provides flexible routing in control panels, and the set is compatible with BMXAMI0810 and BMXAMI0800 analog input modules.

Technical specifications:

• Commercial reference: BMXFTW308S
• Manufacturer: Schneider Electric
• EAN: 3595864110028
• Series / range: Modicon X80
• Accessory type: Prefabricated cable set
• Cable type: Shielded
• Connector: 28-pin removable terminal, module side
• Other end: Free colored wires
• Cable length: 3 m
• Compatible modules: BMXAMI0810, BMXAMI0800
• Product weight: 0.48 kg
• Warranty: 18 months

Features and benefits:

• Shielded construction reduces electromagnetic interference in analog signal wiring
• Pre-fabricated design eliminates manual crimping and reduces wiring errors during panel assembly
• 28-pin removable terminal connector allows fast module replacement without re-wiring
• Color-coded free-wire end simplifies field connections to sensors and transmitters
• 3 m length accommodates flexible routing in standard control cabinets
• Packaged using recycled cardboard, supporting reduced environmental impact

Applications:

• Pre-wiring analog input modules (BMXAMI0810, BMXAMI0800) in Modicon M340 PLC systems
• Industrial automation control panels requiring structured analog signal cabling
• Process control installations connecting field instruments to Modicon X80 I/O modules
• Machine control cabinets where rapid module maintenance or replacement is required

Part of the Schneider Electric Modicon X80 range. REACh compliant with no SVHC substances; no toxic heavy metals or mercury. EU RoHS proactive compliance declaration available.

Also known as: Schneider BMXFTW308S, Schneider Electric BMXFTW308S, Modicon M340 28-way cable set, Schneider X80 analog wiring harness.
