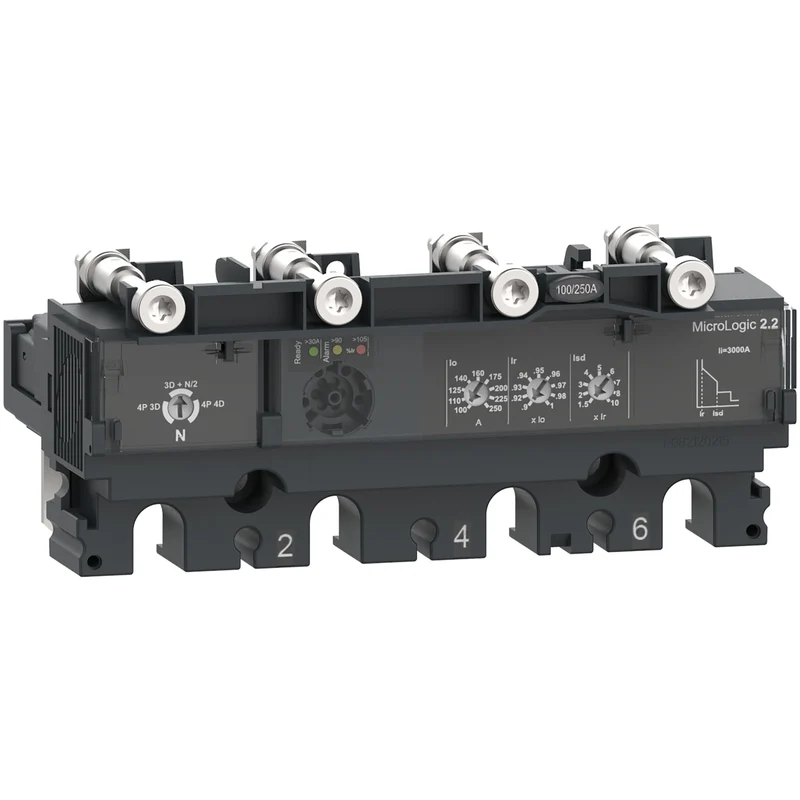

Schneider C1042D100 MicroLogic 2.2 Trip Unit ComPacT NSX 4P 100A 690V

The Schneider Electric MicroLogic 2.2 (C1042D100) is an electronic basic protection trip unit designed for ComPacT NSX100, NSX160, and NSX250 moulded-case circuit breakers. It delivers electronic overcurrent protection in a 4-pole configuration, suited to industrial power distribution systems operating up to 690 V AC.

• Reference: C1042D100
• Range: ComPacT NSX100/160/250
• Model: MicroLogic 2.2
• Product type: Electronic trip unit
• Protection type: Electronic basic protection
• Poles: 4P
• Rated current (In): 100 A
• Rated voltage (Ue): 690 V AC 50/60 Hz
