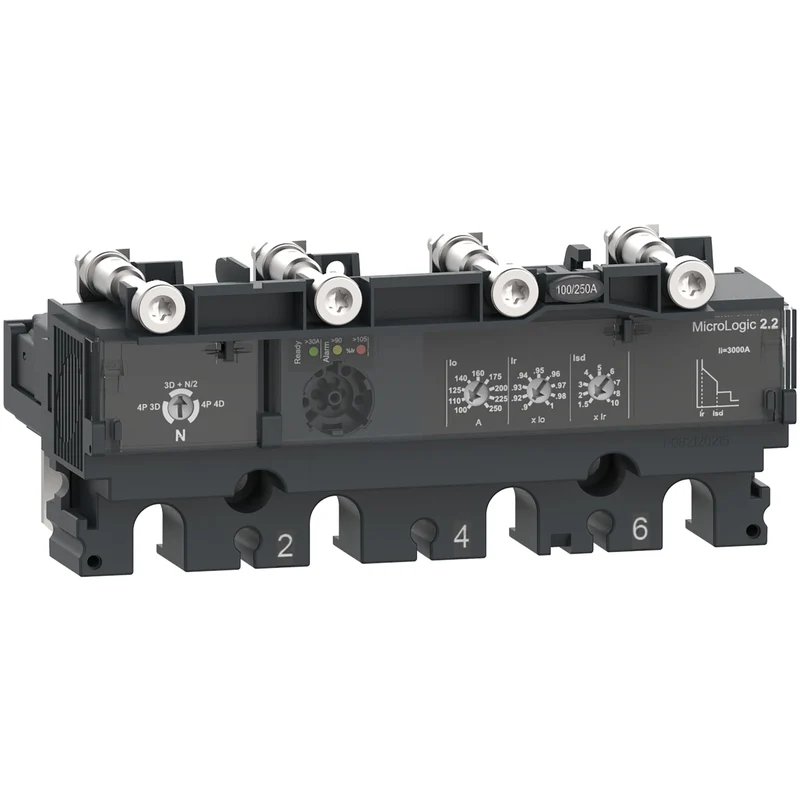

Schneider C2542D250 MicroLogic 2.2 ComPacT NSX250 Trip Unit 4P 250A

The Schneider Electric C2542D250 is the MicroLogic 2.2 electronic trip unit for the ComPacT NSX250 moulded-case circuit breaker range, providing basic electronic overload and short-circuit protection in 4-pole configurations up to 690 V AC.

• Reference: C2542D250
• Range: ComPacT NSX250
• Trip unit model: MicroLogic 2.2
• Product type: Protective unit (trip unit)
• Protection type: Electronic basic protection
• Poles: 4P
• Rated current (In): 250 A
• Rated voltage (Ue): 690 V AC 50/60 Hz
