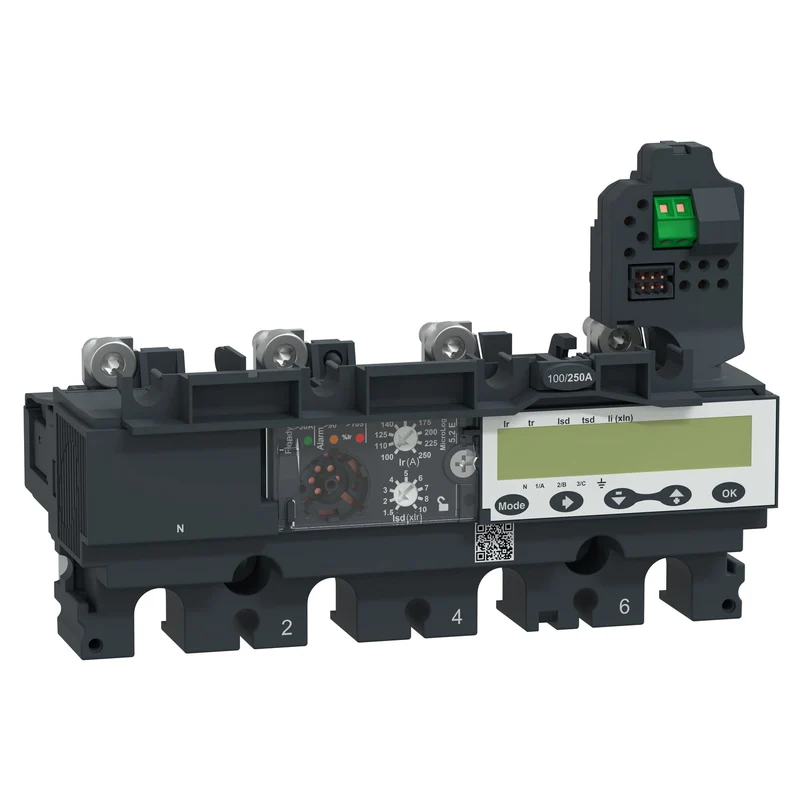

Schneider C2545E250 MicroLogic 5.2E ComPacT NSX250 Trip Unit 4P 250A

The Schneider Electric C2545E250 is a MicroLogic 5.2E electronic protection unit for ComPacT NSX250 moulded-case circuit breakers, providing basic electronic protection and integrated energy measurement in 4-pole configurations up to 690 V AC.

• Reference: C2545E250
• Range: ComPacT NSX
• Model: MicroLogic 5.2E
• Product type: Protection unit (electronic trip unit)
• Poles: 4P
• Rated current (In): 250 A
• Rated voltage (Ue): 690 V AC 50/60 Hz
• Protection functions: Electronic basic protection, energy measurement
