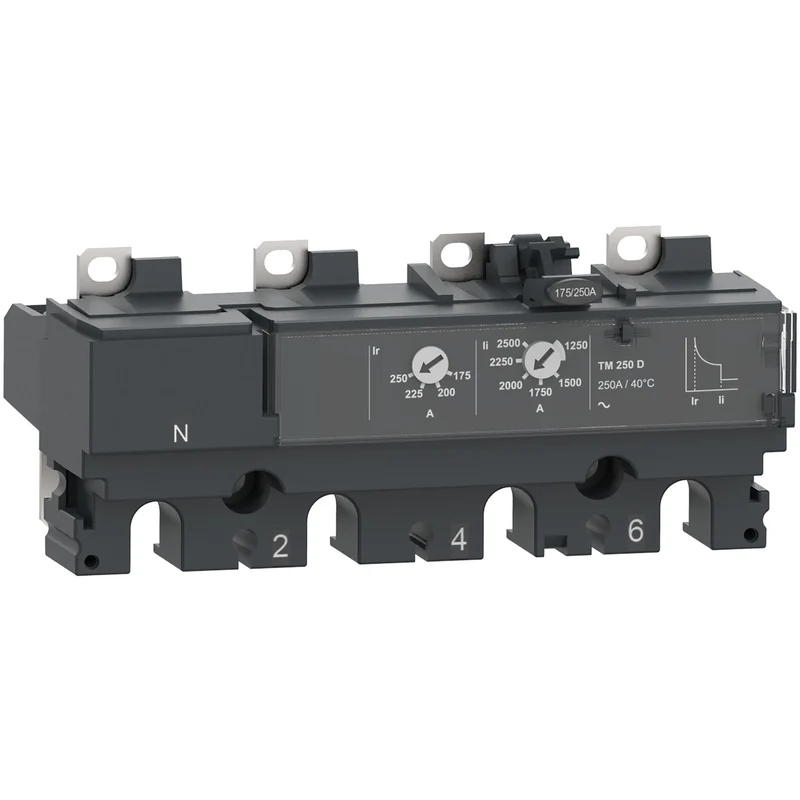

Schneider C254TM200 ComPacT NSX250 TM200D Trip Unit 4P 200A Thermomagnetic

The Schneider Electric C254TM200 is the TM200D thermomagnetic trip unit for the ComPacT NSX250 moulded-case circuit breaker (MCCB) range. It delivers overcurrent protection with a fully protected neutral in a 4P 4D configuration, rated for use in power distribution systems up to 690 V AC.

• Reference: C254TM200
• Range: ComPacT NSX250
• Model: TM200D
• Product type: Trip unit
• Protection type: Thermomagnetic
• Poles: 4P 4D (fully protected neutral)
• Rated current (In): 200 A
• Rated voltage (Ue): 690 V AC 50/60 Hz
