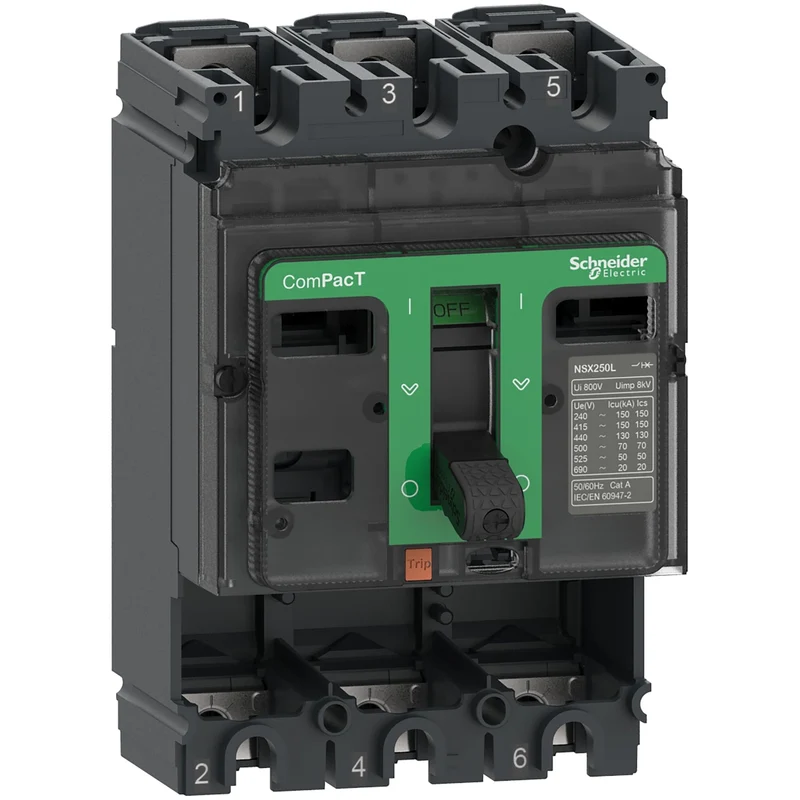

Schneider C25N3 ComPacT NSX250N MCCB Bare Frame 3P 250A 50kA 690V

The Schneider Electric C25N3 is the bare frame (basic housing) of the ComPacT NSX250N moulded-case circuit breaker, part of the Compact NSX new generation range. Supplied without a trip unit, it is designed to accept a separately specified protective device for industrial power distribution applications up to 690 V AC.

• Reference: C25N3
• Range: Compact NSX new generation
• Model: NSX250N
• Type: Bare frame (no trip unit)
• Poles: 3P
• Rated current (In): 250 A at 40 °C
• Rated voltage (Ue): 690 V AC 50/60 Hz
• Breaking capacity (Icu): 50 kA at 415 V AC
• Standard: IEC 60947-2
• Utilisation category: Category A
