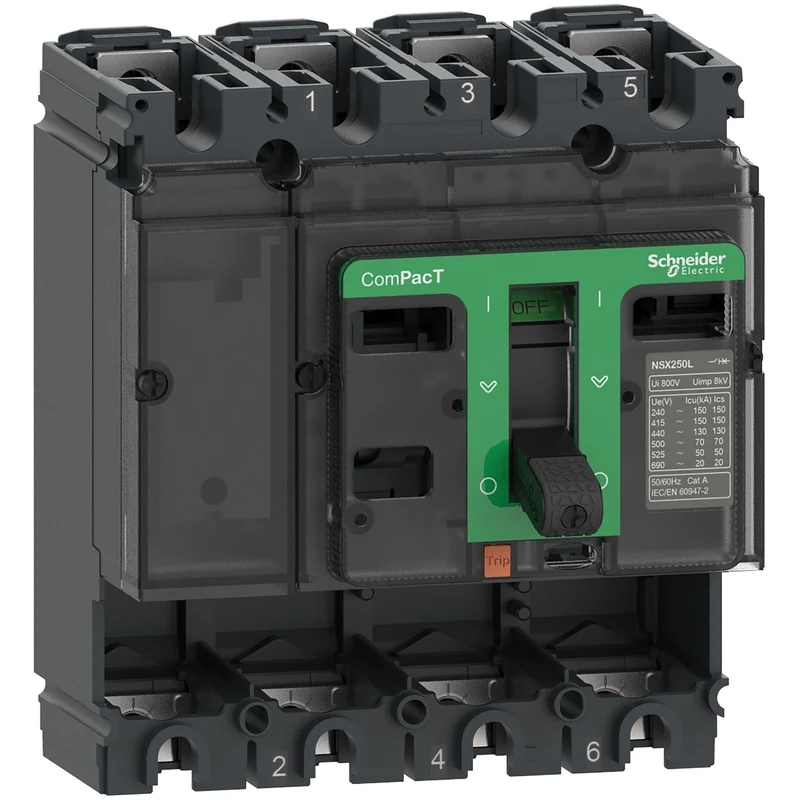

Schneider C25N4 ComPacT NSX250N MCCB 4P 250A Frame 50kA 415VAC

The Schneider Electric C25N4 is a 4-pole moulded-case circuit breaker (MCCB) bare frame from the ComPacT NSX new generation range. It is supplied without a trip unit, allowing an appropriate protective unit to be fitted separately for power distribution applications.

• Reference: C25N4
• Range: ComPacT NSX new generation
• Model: NSX250N
• Type: Bare frame (without trip unit)
• Poles: 4P
• Rated current (In): 250 A at 40 °C
• Rated voltage (Ue): 690 V AC, 50/60 Hz
• Breaking capacity (Icu): 50 kA at 415 V AC
• Utilisation category: Category A
• Standard: IEC 60947-2
