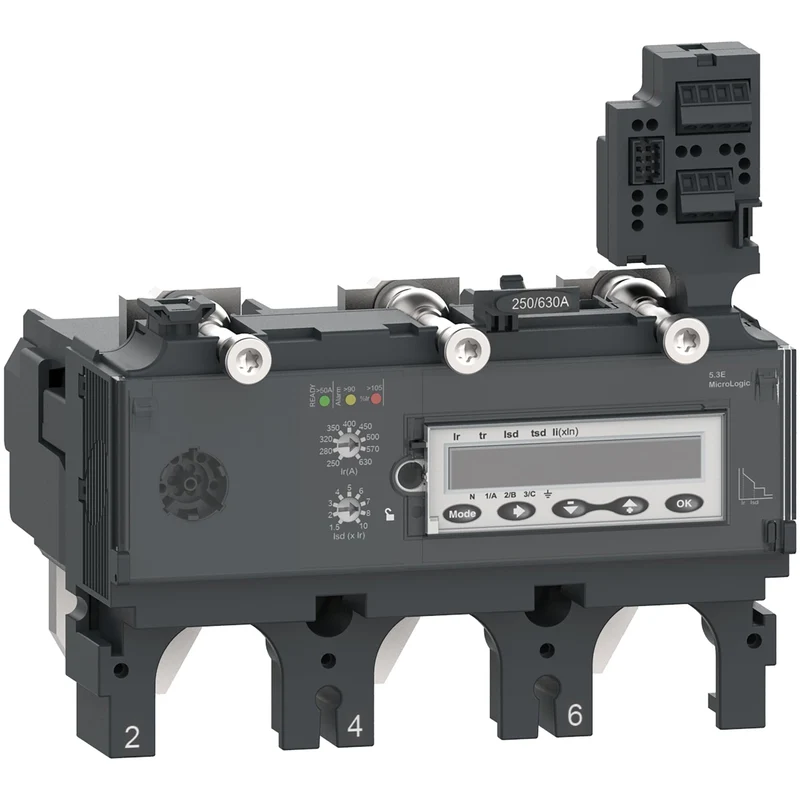

Schneider C4035E400 MicroLogic 5.3E ComPacT NSX Trip Unit 3P 400A

The Schneider Electric C4035E400 is the MicroLogic 5.3E electronic trip unit for ComPacT NSX 400 and NSX 630 moulded-case circuit breakers. It delivers electronic basic protection with integrated energy metering, suited for power distribution systems requiring overcurrent protection and energy measurement.

• Reference: C4035E400
• Range: ComPacT NSX
• Model: MicroLogic 5.3E
• Product type: Trip unit (protection unit)
• Compatible frames: NSX400, NSX630
• Poles: 3P
• Rated current (In): 400 A
• Rated voltage (Ue): 690 V AC 50/60 Hz
• Protection: Electronic basic protection with energy metering
