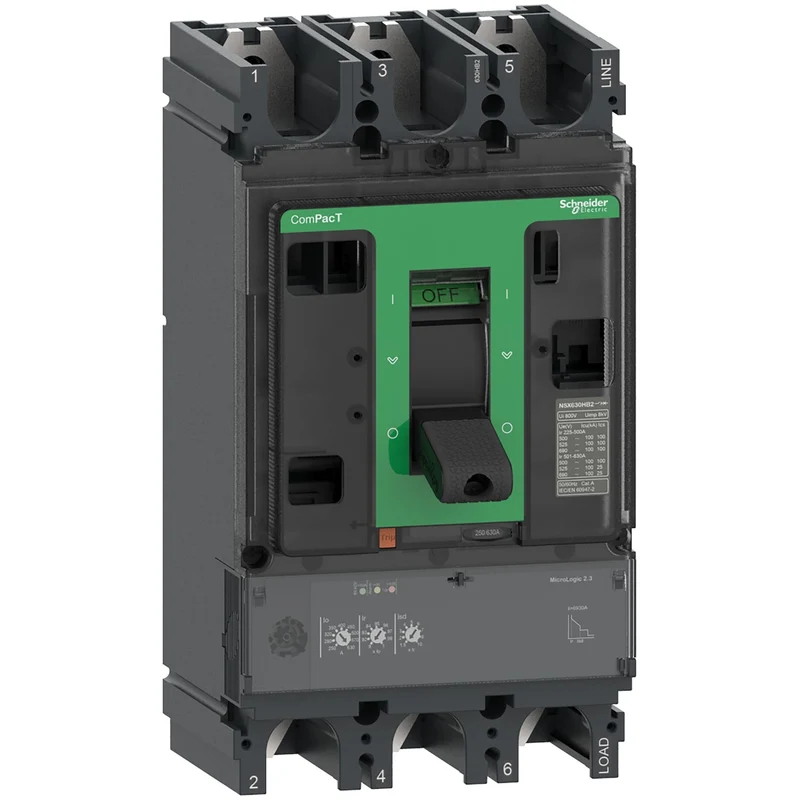

Schneider C40F32D400 NSX400F MCCB 3P 400A 36kA MicroLogic 2.3

The Schneider Electric C40F32D400 is a 3-pole moulded-case circuit breaker (MCCB) from the ComPacT NSX new generation range, fitted with a MicroLogic 2.3 electronic trip unit rated at 400 A. It is designed for overcurrent protection in industrial low-voltage switchboards and power distribution assemblies.

• Reference: C40F32D400
• Range: ComPacT NSX new generation
• Model: NSX400F
• Type: Moulded-case circuit breaker (MCCB)
• Poles: 3P
• Rated current (In): 400 A at 40 °C
• Rated voltage (Ue): 690 V AC 50/60 Hz
• Breaking capacity (Icu): 36 kA at 415 V AC
• Trip unit: MicroLogic 2.3, 400 A
• Utilisation category: Category A
