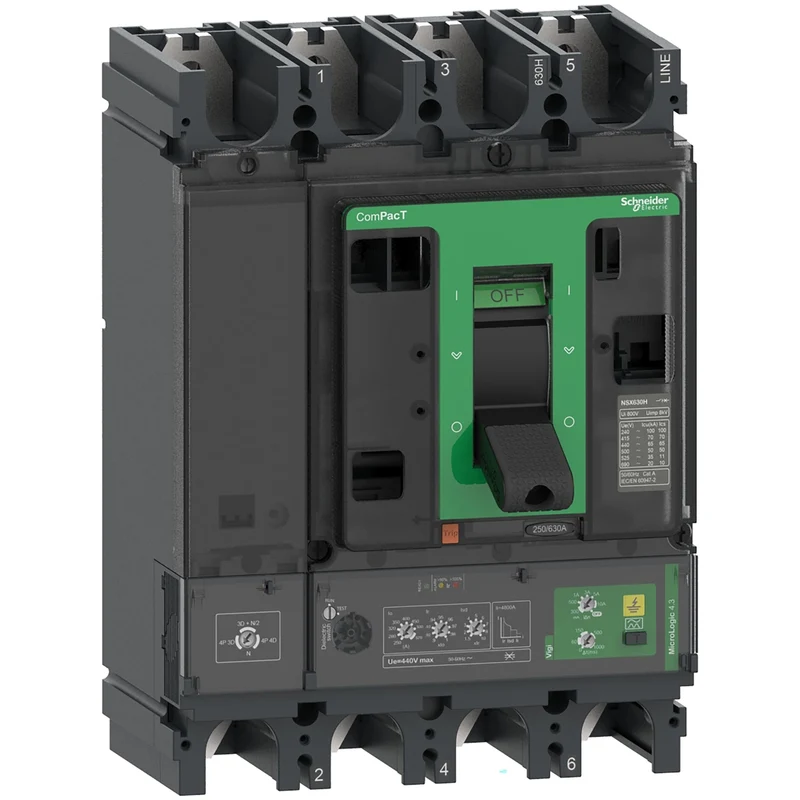

Schneider C40F44V400 NSX400F MCCB 4P 400A 36kA MicroLogic Vigi 4.3

The Schneider Electric C40F44V400 is a ComPacT NSX400F new-generation 4-pole moulded-case circuit breaker with integrated MicroLogic Vigi 4.3 earth-leakage trip unit, for overcurrent and earth-fault protection in industrial and commercial low-voltage power distribution.

• Reference: C40F44V400
• Range: ComPacT NSX new generation
• Model: NSX400F
• Poles: 4P
• Rated current (In): 400 A at 40 °C
• Breaking capacity (Icu): 36 kA at 415 V AC
• Trip unit: MicroLogic Vigi 4.3
• Earth-leakage class: Class A
• Rated voltage (Ue): 440 V AC 50/60 Hz
• Utilisation category: Category A
