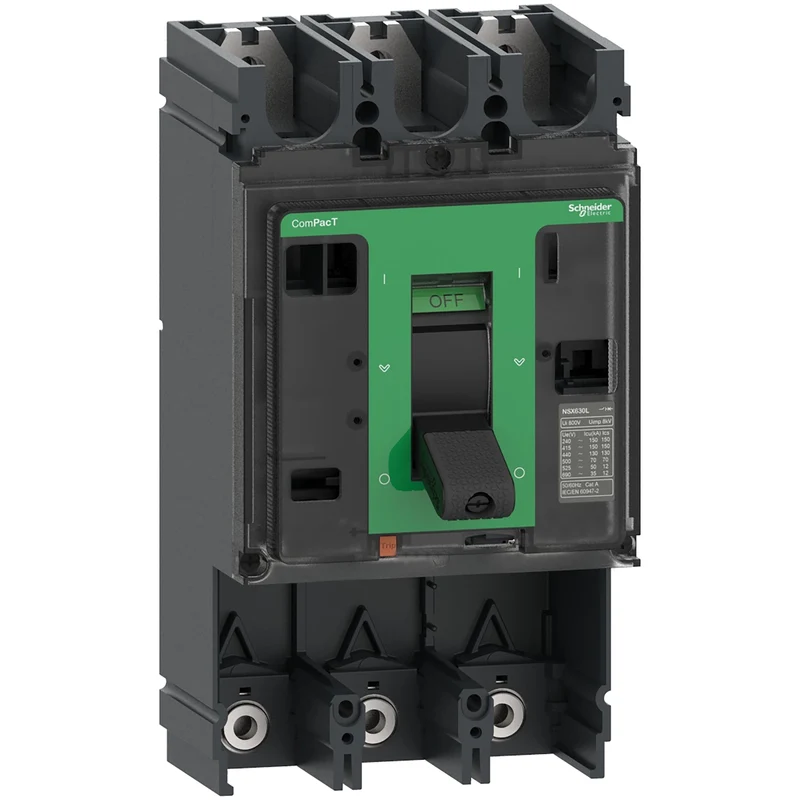

Schneider C40N3 ComPacT NSX400N MCCB Basic Frame 3P 400A 50kA

The Schneider Electric C40N3 is a 3-pole basic frame (chassis supplied without trip unit) from the ComPacT NSX new generation range, intended for industrial power distribution and motor circuit applications in accordance with IEC 60947-2.

• Reference: C40N3
• Range: ComPacT NSX new generation
• Model: NSX400N
• Type: Basic frame — no trip unit included
• Poles: 3P
• Rated current (In): 400 A at 40 °C
• Rated voltage (Ue): 690 V AC 50/60 Hz
• Breaking capacity (Icu): 50 kA at 415 V AC
• Standard: IEC 60947-2
• Utilisation category: Category A
