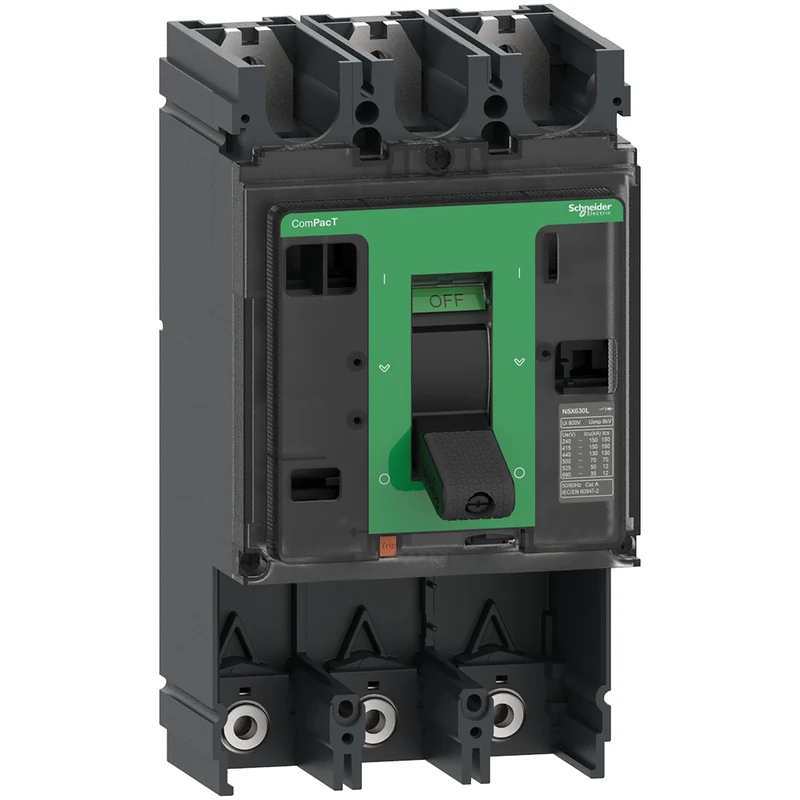

Schneider C63H3 ComPacT NSX630H 3P 630A 70kA Frame No Trip Unit

The Schneider Electric C63H3 is a 3-pole moulded-case circuit breaker (MCCB) basic frame from the ComPacT NSX new generation range, supplied without a protection/trip unit. It is designed for industrial power distribution up to 690 V AC and accepts a separately specified trip unit to complete the assembly.

• Reference: C63H3
• Range: ComPacT NSX new generation
• Model: NSX630H
• Type: Basic frame (without protection unit)
• Poles: 3P
• Rated current (In): 630 A at 40 °C
• Rated voltage (Ue): 690 V AC 50/60 Hz (IEC 60947-2)
• Breaking capacity (Icu): 70 kA at 415 V AC
• Utilisation category: A
