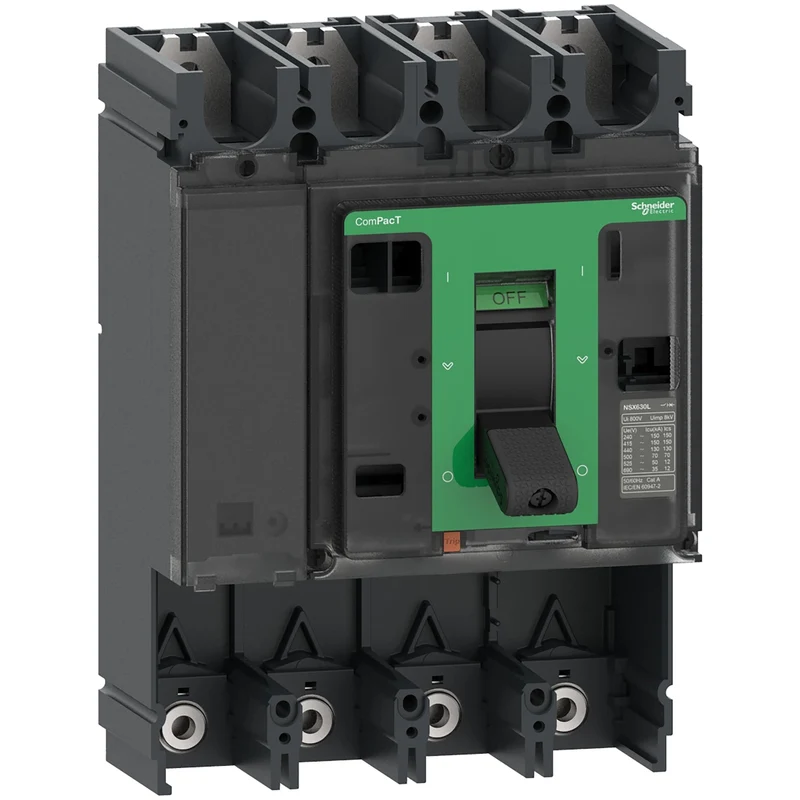

Schneider C63N4 NSX630N MCCB Base Frame 4P 630A 50kA 690V AC

The C63N4 is the ComPacT NSX630N base frame moulded-case circuit breaker (MCCB) from Schneider Electric's Compact NSX new generation range. This 4-pole, 630 A chassis is supplied without a trip unit and is designed for integration into industrial and commercial power distribution assemblies rated up to 690 V AC.

• Reference: C63N4
• Range: Compact NSX new generation (ComPacT NSX)
• Model: NSX630N
• Type: Base frame, without trip unit
• Poles: 4P
• Rated current (In): 630 A at 40°C
• Rated voltage (Ue): 690 V AC 50/60 Hz, per IEC 60947-2
• Breaking capacity (Icu): 50 kA at 415 V AC
• Utilisation category: Category A
