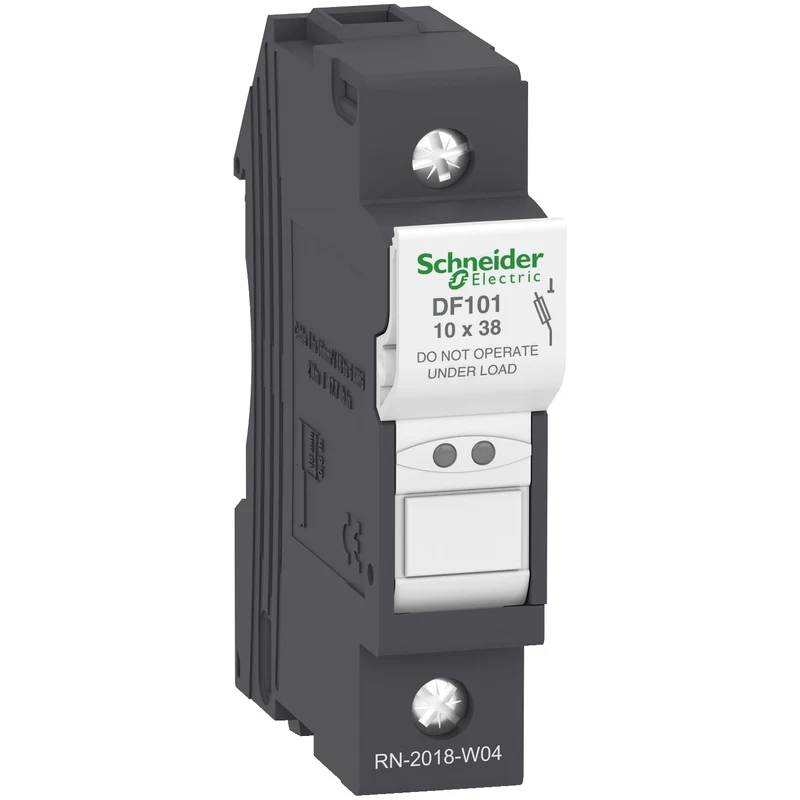

Schneider DF101 TeSys DF Fuse Carrier 1P 14x51mm

The Schneider Electric DF101 is a 1-pole TeSys DF fuse carrier for 10 x 38 mm fuses with a rated operating current of 32 A at 400 V AC. Equipped with a lockable handle and supporting both aM and gG fuse types, it withstands 120 kA short-circuit currents across AC and DC circuits up to 690 V.

Technical specifications:

• Commercial reference: DF101
• Manufacturer: Schneider Electric
• EAN: 3389119407205
• Series / range: TeSys DF
• Product type: Fuse carrier
• Number of poles: 1P
• Fuse size: 10 x 38 mm
• Fuse types: aM, gG
• Rated operating current [Ie]: 32 A at 400 V AC
• Rated voltage [Ue]: 690 V AC / 690 V DC
• Short-circuit withstand current: 120 kA at 400 V (IEC 60947-3)
• Mounting: 35 mm symmetrical DIN rail, vertical
• Connection: Screw terminals, 1-16 mm² (single cable) or 1-6 mm² (dual cable), rigid or flexible
• Dimensions (W x H x D): 17.5 x 79.5 x 61 mm
• Weight: 0.042 kg
• IP rating: IP20
• Operating temperature: -40 to 70°C (derated above 20°C)
• Standards: EN/IEC 60947-3, EN/IEC 60269-2, UL 4248-1, CSA C22.2 No 4248-1, EN 45545-2: R22 HL2
• Certifications: IEC, UL recognized, CSA, CCC, EAC, DNV-GL

Features and benefits:

• Lockable handle prevents unintentional re-engagement during maintenance
• Accepts both aM (motor protection) and gG (general purpose) fuse types for application flexibility
• 120 kA short-circuit withstand current suitable for demanding industrial installations
• Wide -40 to 70°C operating range with EN 45545-2 railway compliance
• Compatible with DF2CA and DF2CN disconnect inserts for modular panel assembly

Applications:

• Motor circuit isolation in industrial control panels using aM fuses
• General distribution fuse disconnection in low-voltage switchboards
• DC circuit isolation in automation and control systems up to 690 V
• Railway and rolling stock electrical panels requiring EN 45545-2 compliance

Compliant with EN/IEC 60947-3 and EN/IEC 60269-2. Part of the Schneider Electric TeSys DF range.

Also known as: Schneider DF101, Schneider Electric DF101, TeSys fuse carrier, Schneider 10x38mm fuse disconnector.
