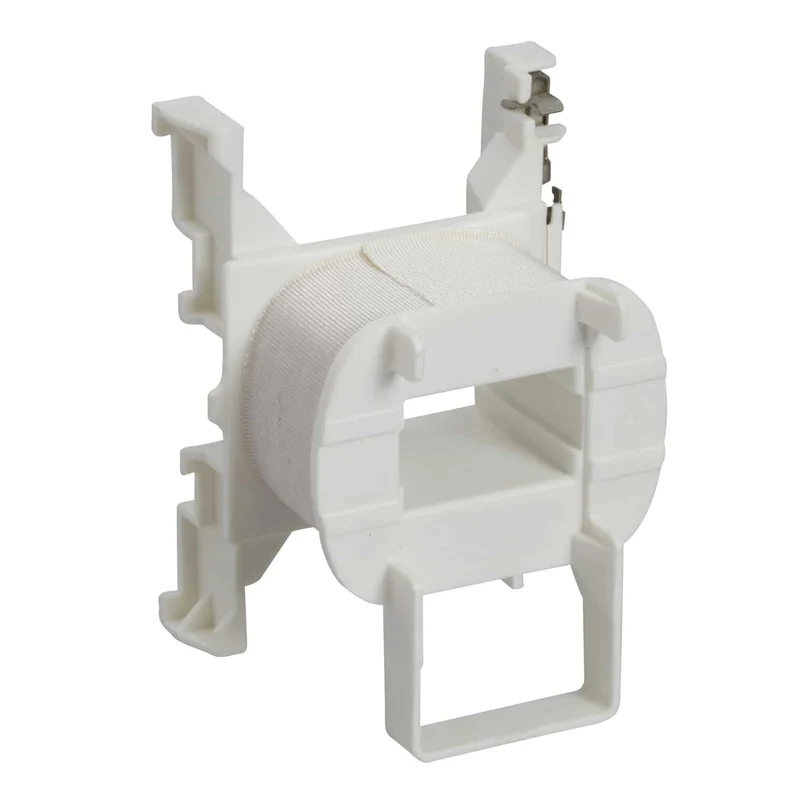

Schneider Electric LXD1B7 LXD1 Contactor coil 24V AC

The Schneider Electric LXD1B7 is a TeSys D series replacement contactor coil (LXD1 range) rated at 24 V AC 50/60 Hz, designed for use with LC1D09–D38 and LC1DT20–DT40 contactors and CAD relay bases.

• Product range: TeSys D – LXD1 series
• Control supply voltage: 24 V AC at 50/60 Hz
• Compatible contactors: LC1D09–D38, LC1DT20–DT40, CAD relay bases
• Coil resistance: 5.37 Ω at 20 °C
• Closed-circuit inductance: 0.22 H
• Inrush power: 70 VA at 50 Hz and 60 Hz, cos φ 0.75 (at 20 °C)
• Holding power: 7 VA at 50 Hz / 7.5 VA at 60 Hz, cos φ 0.3 (at 20 °C)
• Mechanical durability: 15 million operating cycles
• Maximum operating rate: 3,600 cycles/h at < 60 °C
• Operating voltage range: 0.8–1.1 Uc at 50 Hz; 0.85–1.1 Uc at 60 Hz (at < 60 °C)
• Drop-out voltage: 0.3–0.6 Uc at 50/60 Hz (at < 60 °C)
• Heat dissipation: 2–3 W at 50/60 Hz
• Operating ambient temperature: −5 to +60 °C
• Coil technology: No built-in suppressor
