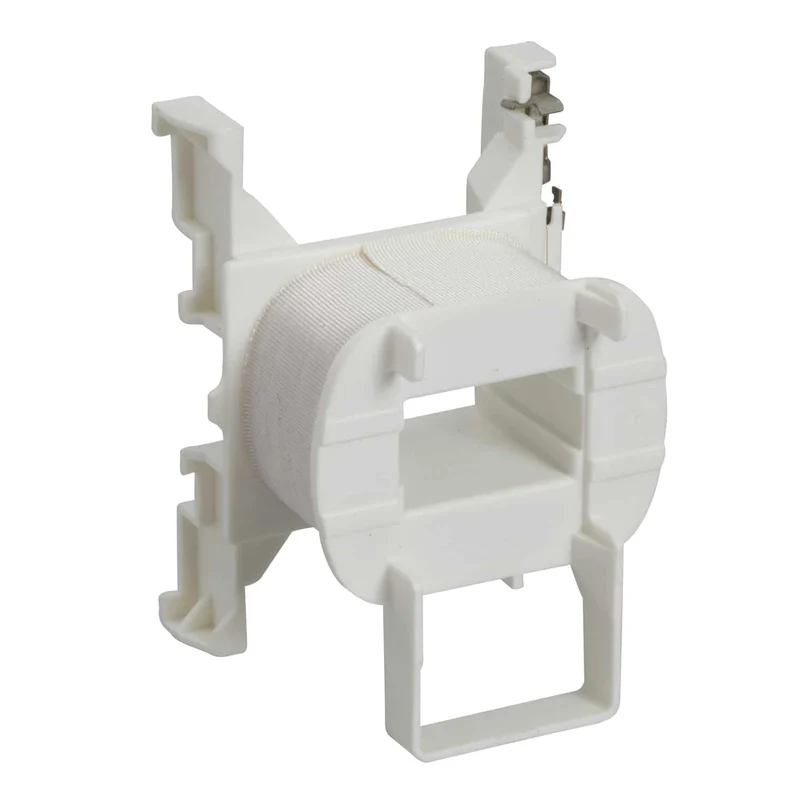

Schneider Electric LXD1F7 LXD1 Contactor coil 110V AC

The Schneider Electric LXD1F7 is a replacement contactor coil from the TeSys D range (LXD1 series), rated at 110 V AC 50/60 Hz. It is designed as a direct-fit replacement coil for LC1D09–D38, LC1DT20–DT40, and CAD series contactors and auxiliary contact blocks.

• Product type: Contactor coil, TeSys D range (LXD1 series)
• Control circuit voltage: 110 V AC, 50/60 Hz
• Compatible contactors: LC1D09–D38, LC1DT20–DT40, CAD
• Coil resistance: 124.1 Ω at 20 °C
• Closed-circuit inductance: 4.6 H
• Inrush power: 70 VA at 50 Hz and 70 VA at 60 Hz (cos φ 0.75, at 20 °C)
• Holding power: 7 VA at 50 Hz / 7.5 VA at 60 Hz (cos φ 0.3, at 20 °C)
• Operating voltage range: 0.8–1.1 Uc at 50 Hz; 0.85–1.1 Uc at 60 Hz (below 60 °C)
• Drop-out voltage: 0.3–0.6 Uc at 50/60 Hz (below 60 °C)
• Heat dissipation: 2–3 W at 50/60 Hz
• Mechanical durability: 15 million cycles
• Maximum operating cycle rate: 3,600 cycles/h at below 60 °C
• Coil technology: No built-in suppressor
• Ambient operating temperature: −5 to +60 °C
