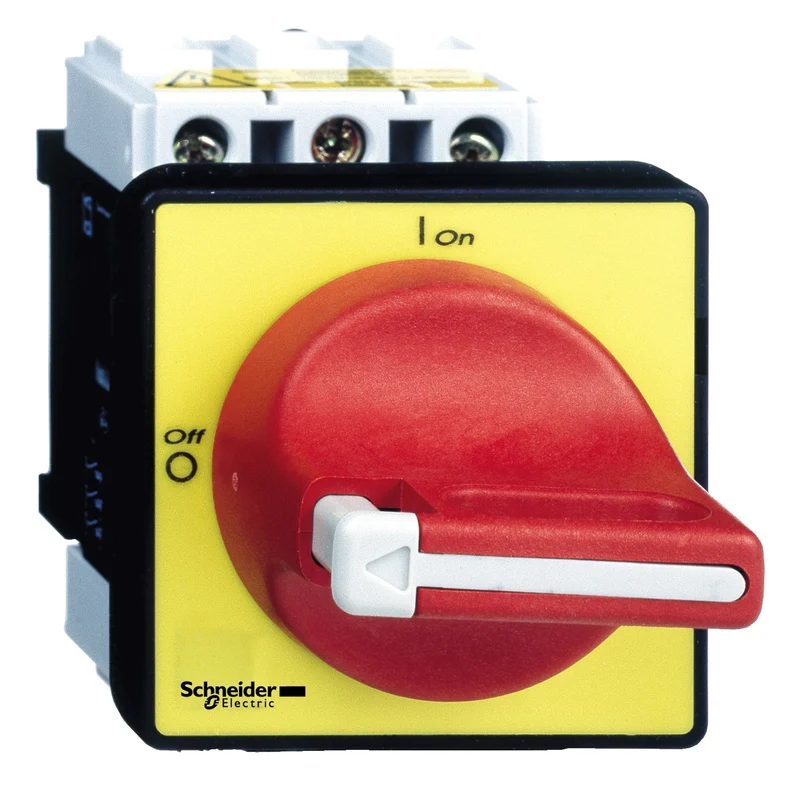

Schneider Electric VCD01 VCD Switch disconnector 3P 20A 690V, red handle

The Schneider Electric VCD01 is a 3-pole emergency stop disconnector switch from the TeSys Vario range, rated for door-panel mounting and the safe isolation of AC and DC circuits at up to 690 V AC.

• Poles / Contacts: 3P, 3 NO
• Rated Operational Voltage [Ue]: 690 V AC, 50/60 Hz
• Conventional Free Air Thermal Current [Ith]: 20 A
• Rated Operational Current [Ie]: 11 A (AC-23, 400 V)
• Rated Operational Power: 11 kW at 690 V (AC-23A); 7.5 kW at 690 V (AC-3); 5.5 kW at 400–415 V (AC-23A); 4 kW at 400–415 V (AC-3)
• Rated Impulse Withstand Voltage [Uimp]: 8 kV
• Rated Conditional Short-Circuit Current: 10 kA at 400 V (with 20 A aM or 20 A gG fuse)
• Rated Short-Time Withstand Current [Icw]: 300 A at 400 V, 1 s
• Rotary Handle: Direct-mount, red, 0–1 marked, lockable with 1–3 padlocks (4–8 mm shackle)
• Mounting: Door-panel via 22.5 mm cutout; suitable for isolation on AC and DC networks
• Terminal Connection: Screw terminals; 10 mm² rigid cable or 6 mm² flexible cable with ferrule; tightening torque 2.1 N·m
• Durability: 100,000 mechanical cycles; 100,000 electrical cycles (AC-21); 30,000 electrical cycles (DC-1...5)
• Degree of Protection: IP20 (IEC 60529); IP65
• Standards & Certifications: IEC 60947-3; UL, CSA, CCC, UKCA, GL; operating temperature −20 to +50 °C; weight 0.215 kg
