Schneider Electric VCD02 VCD Switch disconnector 3P 12A, red handle

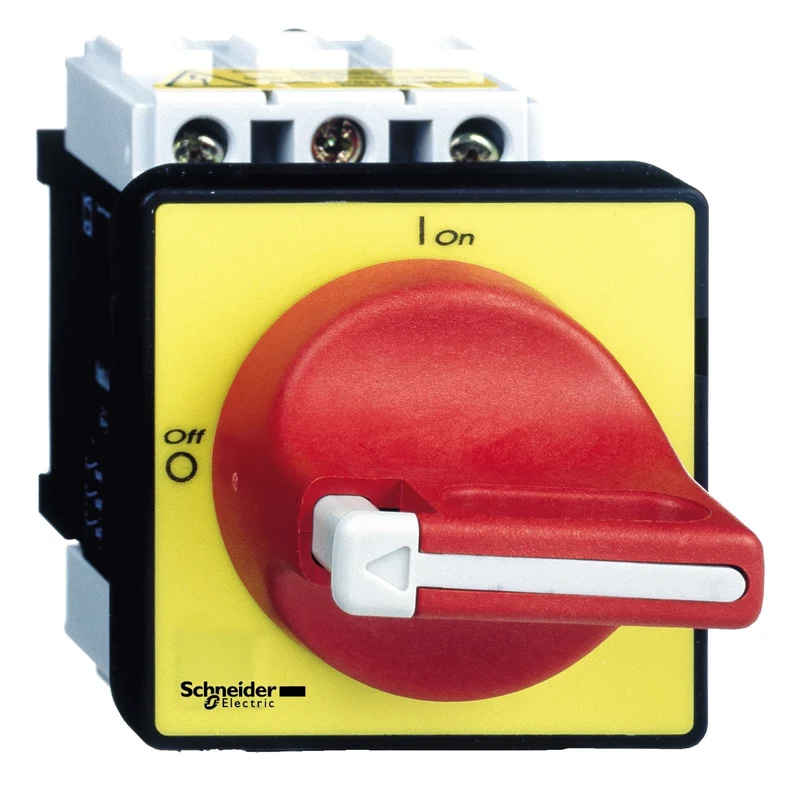

The Schneider Electric VCD02 is a 3-pole TeSys Vario switch disconnector designed for emergency switching-off duty, door-mounted via a direct rotary handle through a 22.5 mm cut-out. Rated at 12 A conventional free air thermal current and up to 690 V AC, it is suitable for isolation on both AC and DC networks.

• Poles / contacts: 3P, 3 NO
• Rated operational voltage (Ue): 690 V AC, 50/60 Hz
• Conventional free air thermal current (Ith): 12 A
• Conventional enclosed thermal current (Ithe): 10 A
• Rated operational current (Ie): 8.1 A (AC-23) at 400 V
• Rated operational power (selection): 3 kW at 400–415 V (AC-3); 4 kW at 400–415 V (AC-23A); 5.5 kW at 690 V (AC-3); 7.5 kW at 690 V (AC-23A)
• Rated conditional short-circuit current: 10 kA at 400 V with 12 A aM or gG fuse
• Rated impulse withstand voltage (Uimp): 8 kV
• Handle: Red rotary handle with yellow front plate, marked 0-1; padlockable with 1–3 padlocks (4–8 mm shackle diameter)
• Degree of protection: IP20 and IP65 per IEC 60529
• Ambient operating temperature: -20 to +50 °C
• Durability: 100,000 mechanical cycles; 100,000 electrical cycles (AC-21); 30,000 cycles (DC-1 to DC-5)
• Standards / certifications: IEC 60947-3; CSA, UL, GL, CCC, UKCA
• Dimensions / weight: 60 × 60 mm base, 74 mm height, 60 mm width; 0.215 kg
