Anbieter: SCHNEIDER ELECTRIC

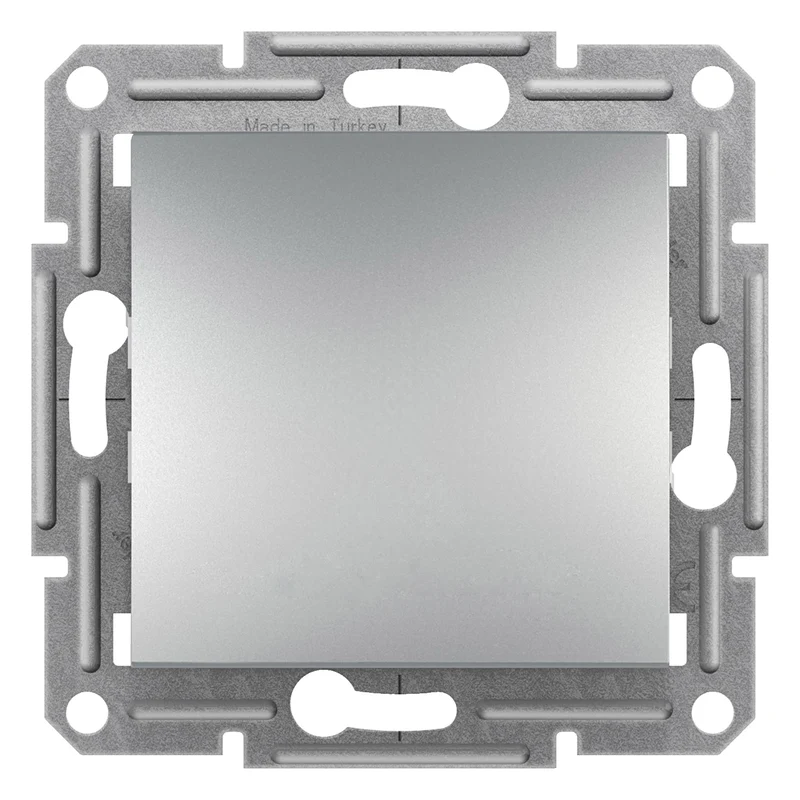

Schneider EPH0100361 Asfora 1-way switch 10 AX 250 V AC Aluminium
Beschreibung
The Schneider Electric Asfora EPH0100361 is a 1-way switch in Aluminium finish, supplied without a cover frame and fitted with screw terminals.
Technical specifications:
- Range: Asfora
- Product type: Switch
- Device presentation: Mechanism with fixing frame
- Switch function: 1-pole 1-way
- Colour: Aluminium
- Mounting: Flush
- Rated current: 10 AX at 250 V AC
- Wire stripping length: 13.0 mm
- Material: ABS (acrylonitrile butadiene-styrene)
- Conductor material: Copper
- Terminals: Lift terminals
- Width: 71 mm
- Height: 71 mm
- Depth: 43.0 mm
- Weight: 0.0617 kg
- Standards: IEC 60669-1
- IP rating: IP20
