Anbieter: SCHNEIDER ELECTRIC

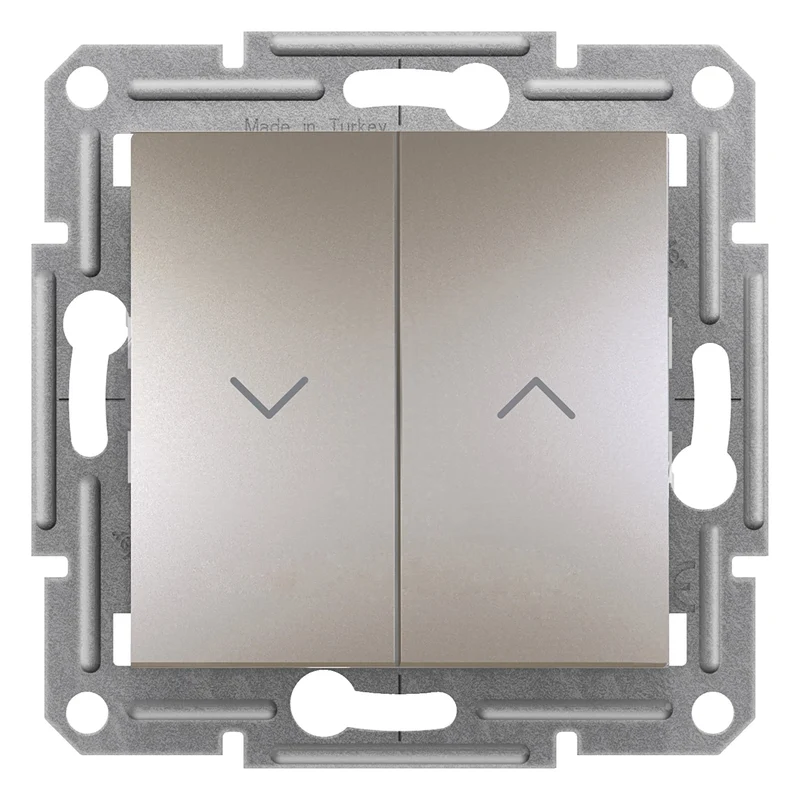

Schneider EPH1300169 Asfora Roller Blind Push-Button 10A 250V Bronze
Beschreibung
The Schneider Electric EPH1300169 is a roller blind (shutter) push-button from the Asfora range, 10 A, 250 V AC, finished in bronze.
Technical specifications:
- Range: Asfora
- Product type: Push-button
- Device presentation: Mechanism with fixing frame
- Switch function: Roller blind
- Colour: Bronze
- Mounting: Flush
- Rated current: 10 A at 250 V AC
- Wire stripping length: 13.0 mm
- Material: ABS (acrylonitrile butadiene-styrene)
- Conductor material: Copper
- Terminals: Screwless terminals
- Width: 71 mm
- Height: 71 mm
- Depth: 43.0 mm
- Weight: 0.06135 kg
- Standards: IEC 60669-1
- IP rating: IP20
