Anbieter: SCHNEIDER ELECTRIC

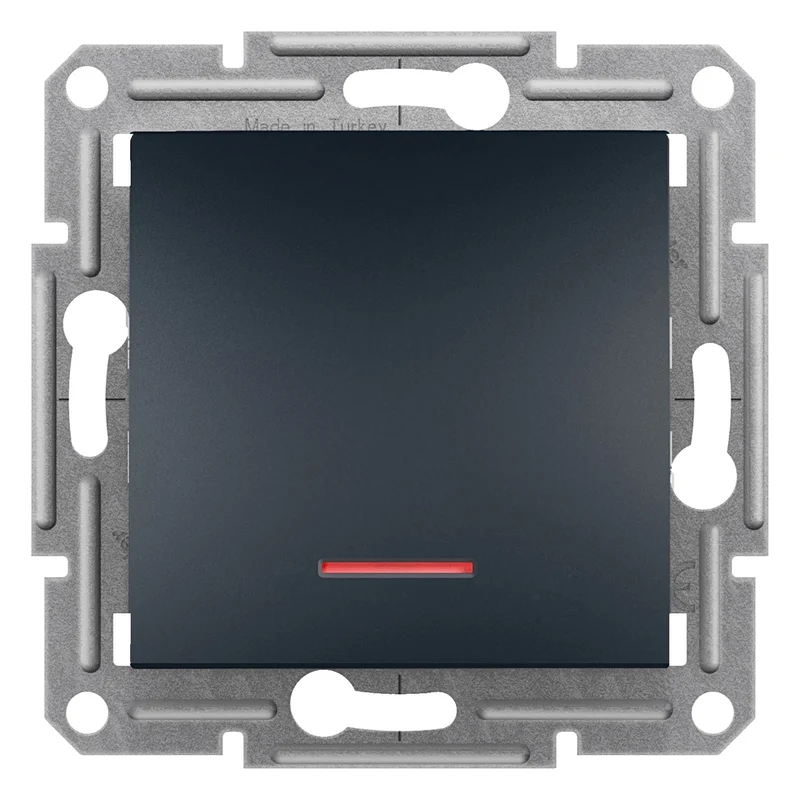

Schneider EPH1400171 Asfora Switch 10AX 250V AC 100W Anthracite
Beschreibung
The Schneider Electric EPH1400171 is a wall switch from the Asfora range, finished in Anthracite and fitted with screwless terminals for quick, tool-free installation.
Technical specifications:
- Range: Asfora
- Product type: Switch
- Device presentation: Mechanism with fixing frame and cover plate
- Switch function: 1-pole 1-way
- Colour: Anthracite
- Mounting: Flush
- Actuator: Rocker
- Rated current: 10 AX at 250 V AC
- Rated voltage: 230 V
- Local signalling: LED
- Wire stripping length: 13.0 mm
- Material: ABS (acrylonitrile butadiene-styrene)
- Conductor material: Copper
- Terminals: Screwless terminals
- Width: 71 mm
- Height: 71 mm
- Depth: 43 mm
- Standards: IEC 60669-1
- IP rating: IP20
- IK rating: IK02
