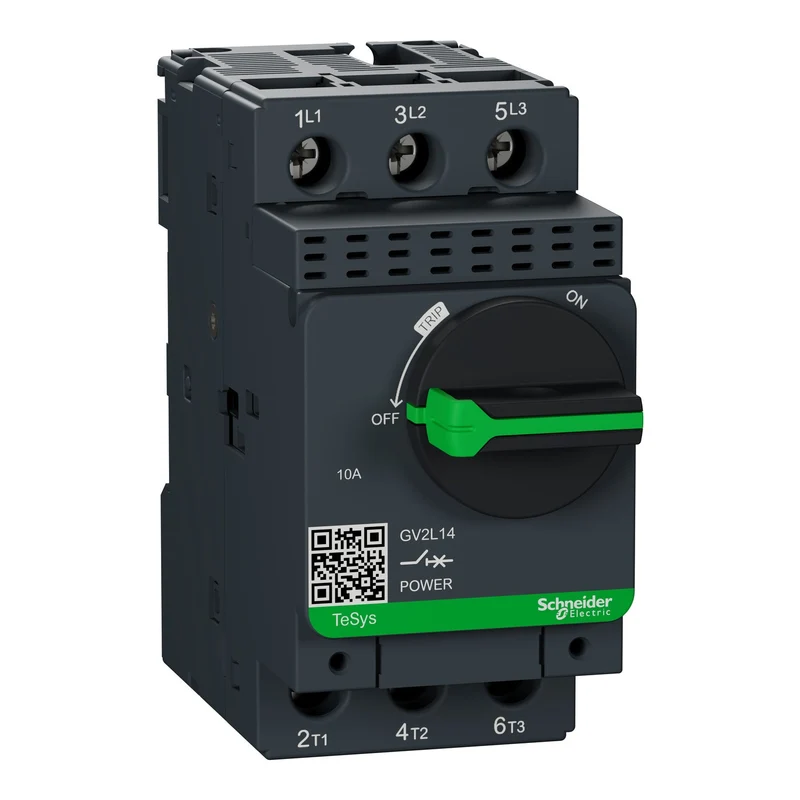

Schneider GV2L14 TeSys GV2 Motor Circuit Breaker 10 A 3P 3 kW

The Schneider Electric GV2L14 is a 3-pole motor circuit breaker from the TeSys GV2 range, providing overcurrent protection for motors via screw terminal connections.

• Reference: GV2L14
• Range: TeSys GV2
• Model: GV2L
• Product type: Motor circuit breaker
• Poles: 3P
• Rated current (In): 10 A
• Motor power: 3 kW at 400/415 V AC 50/60 Hz
• Breaking capacity (Icn): 100 kA Icu at 230/240 V AC 50/60 Hz per IEC 60947-2
• Terminal type: Screw terminal
• Utilisation category: Category A per IEC 60947-2
