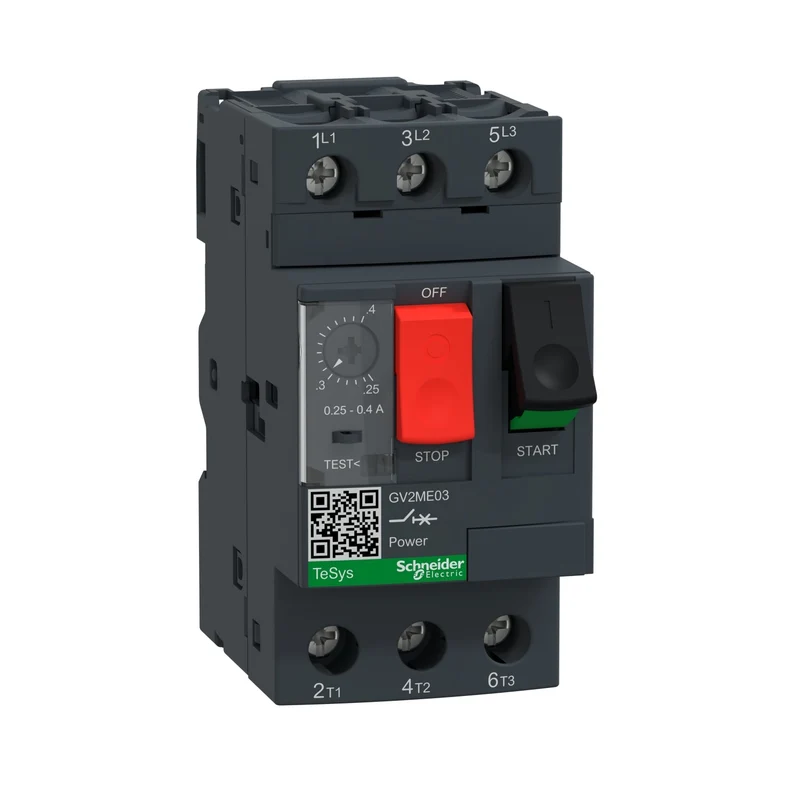

Schneider GV2ME03 TeSys GV2 Motor Circuit Breaker 0.25-0.40A 3P 100kA

The Schneider Electric GV2ME03 is a 3-pole thermomagnetic motor circuit breaker from the TeSys GV2 range, designed to provide combined overload and short-circuit protection for small motors with screw terminal connections.

• Reference: GV2ME03
• Range: TeSys GV2
• Model: GV2ME
• Type: Motor circuit breaker
• Poles: 3P
• Current range: 0.25–0.40 A
• Connection: Screw terminals
• Breaking capacity: 100 kA Icu at 230/240 V AC 50/60 Hz (IEC 60947-2)
• Motor power: 0.12 kW at 400/415 V AC 50/60 Hz
• Utilisation category: Category A (IEC 60947-2)
