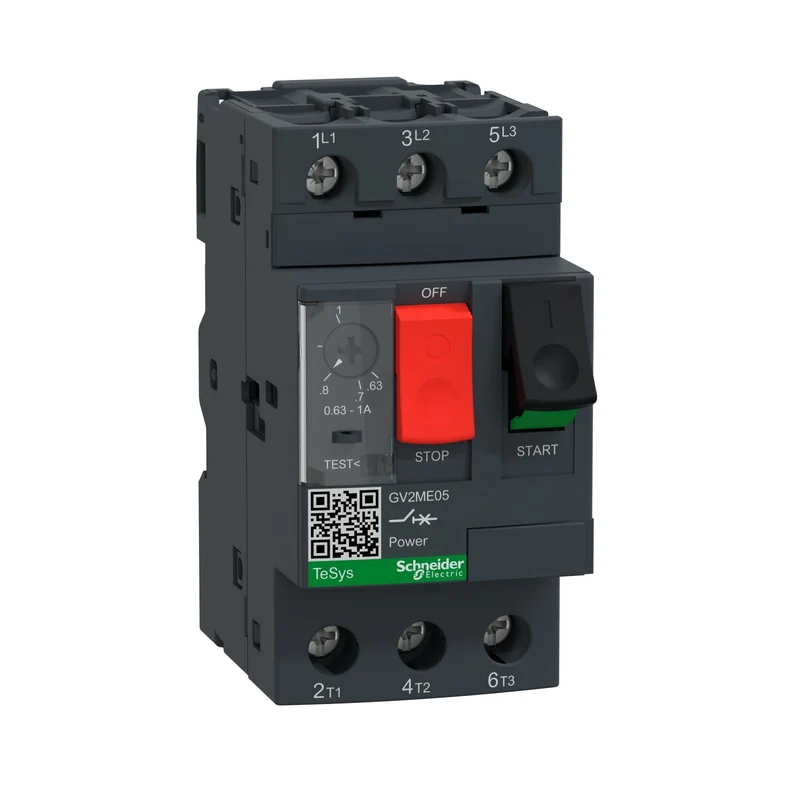

Schneider GV2ME05 TeSys GV2 Motor Circuit Breaker 3P 0.63-1A

The Schneider Electric GV2ME05 is a 3-pole motor protection circuit breaker from the TeSys GV2 range, providing thermomagnetic protection for motors with an adjustable current setting of 0.63 to 1 A via screw terminals.

• Reference: GV2ME05
• Range: TeSys GV2
• Model: GV2ME
• Type: Motor circuit breaker
• Poles: 3P
• Current setting range: 0.63–1 A
• Motor power: 0.25 kW at 400/415 V AC 50/60 Hz
• Breaking capacity (Icu): 100 kA at 230/240 V AC 50/60 Hz per IEC 60947-2
• Utilisation category: Category A per IEC 60947-2
• Connection: Screw terminal
