Anbieter: SCHNEIDER ELECTRIC

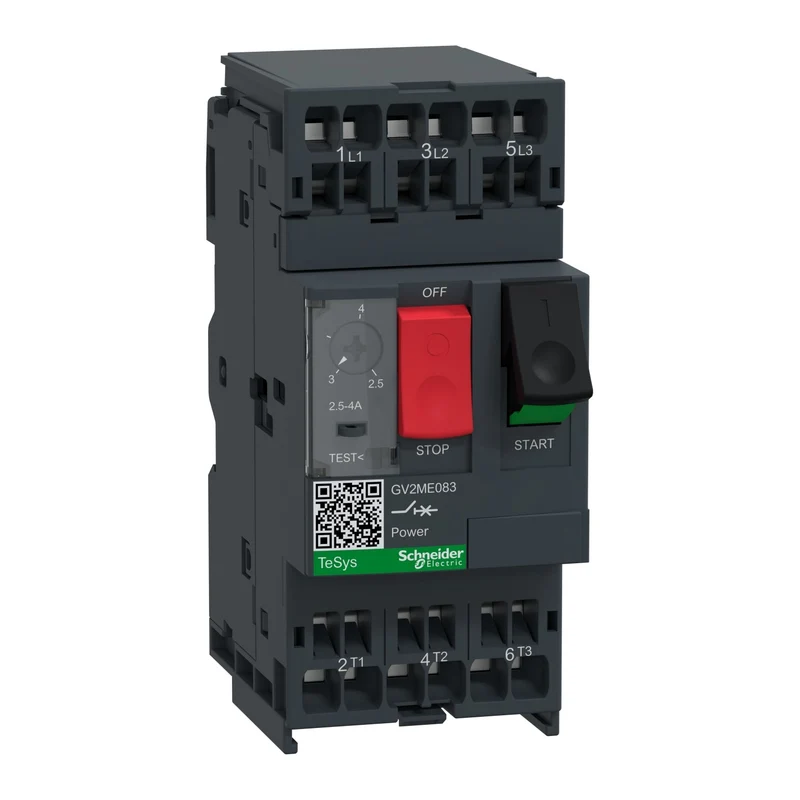

Schneider GV2ME083 TeSys GV2 Motor Circuit Breaker 3P 2.5-4A Spring Terminals
Beschreibung
The Schneider Electric GV2ME083 is a motor circuit breaker from the TeSys GV2 range, offering thermal magnetic protection with spring terminals for motor applications.
Technical specifications:
- Range: TeSys Deca
- Product type: Motor circuit breaker
- Device name: GV2ME
- Application: Motor protection
- Trip unit technology: Thermal-magnetic
- Rated voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
- Insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
- Rated current: 4 A
- Poles description: 3P
- Network type: AC
- Network frequency: 50/60 Hz conforming to IEC 60947-2
- Utilisation category: Category A conforming to IEC 60947-2
- Colour: Dark grey
- Fixing: 35 mm symmetrical DIN rail: clipped
- Terminals: Power circuit: spring terminals 2 cable(s) 1...6 mm - solid
- Width: 45 mm
- Height: 101 mm
- Depth: 78.5 mm
- Weight: 0.28 kg
- Standards: EN/IEC 60947-2
- IP rating: IP20 conforming to IEC 60529
- IK rating: IK04
