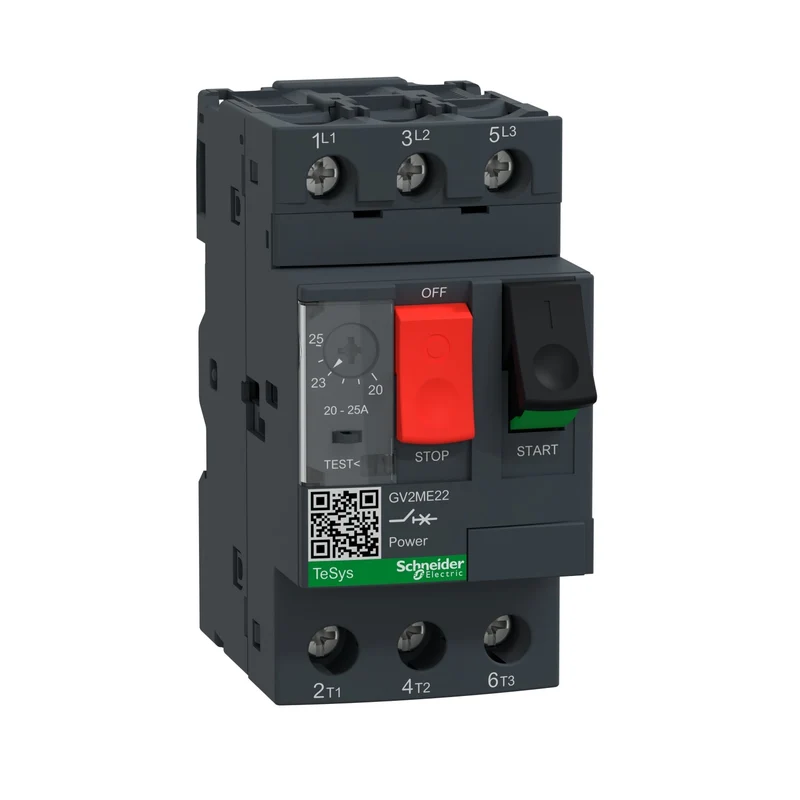

Schneider GV2ME22 TeSys GV2 Motor Circuit Breaker 20-25A 11kW 50kA 3P

The Schneider Electric GV2ME22 is a 3-pole TeSys GV2 motor circuit breaker with thermal-magnetic protection, rated for a current range of 20 to 25 A with screw terminal connections, designed for motor protection applications up to 11 kW.

• Reference: GV2ME22
• Range: TeSys GV2
• Model: GV2ME
• Type: Motor circuit breaker
• Poles: 3P
• Rated current (In): 20...25 A
• Motor power: 11 kW at 400/415 V AC 50/60 Hz
• Breaking capacity (Icu): 50 kA at 230/240 V AC 50/60 Hz per IEC 60947-2
• Utilisation category: Category A per IEC 60947-2
• Connection: Screw terminals
