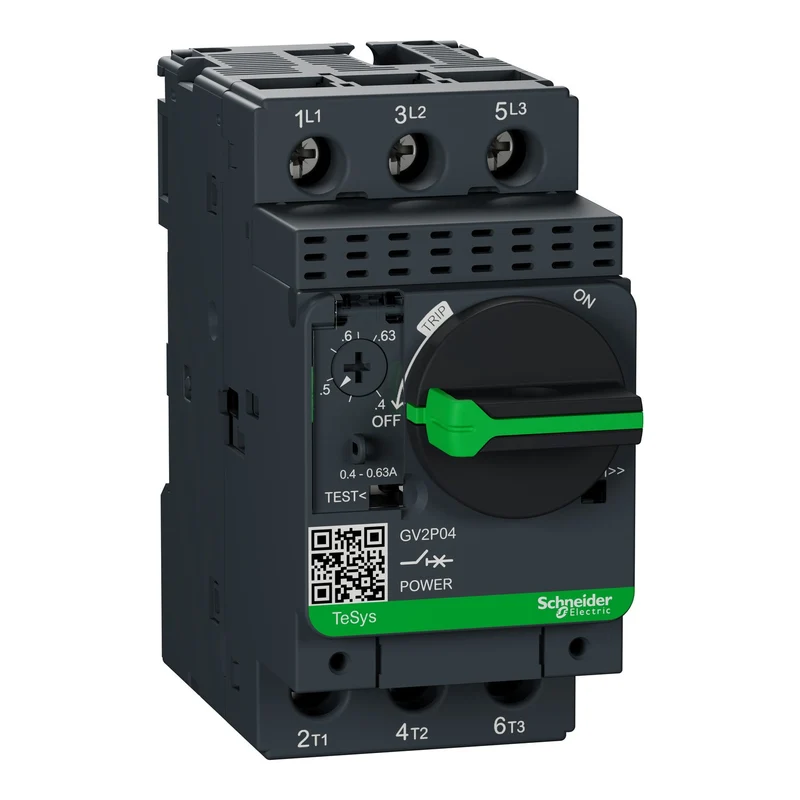

Schneider GV2P04 TeSys GV2 Motor Circuit Breaker 3P 0.4–0.63A 100kA

The Schneider Electric GV2P04 is a 3-pole TeSys GV2 motor circuit breaker with thermomagnetic protection, designed for motor starting and protection applications with a rated current range of 0.4–0.63 A.

• Reference: GV2P04
• Range: TeSys GV2
• Type: Motor circuit breaker with thermomagnetic protection
• Poles: 3P
• Rated current (In): 0.4–0.63 A
• Breaking capacity (Icu): 100 kA at 230/240 V AC 50/60 Hz per IEC 60947-2
• Motor power: 0.12 kW at 400/415 V AC 50/60 Hz
• Utilisation category: Category A per IEC 60947-2
