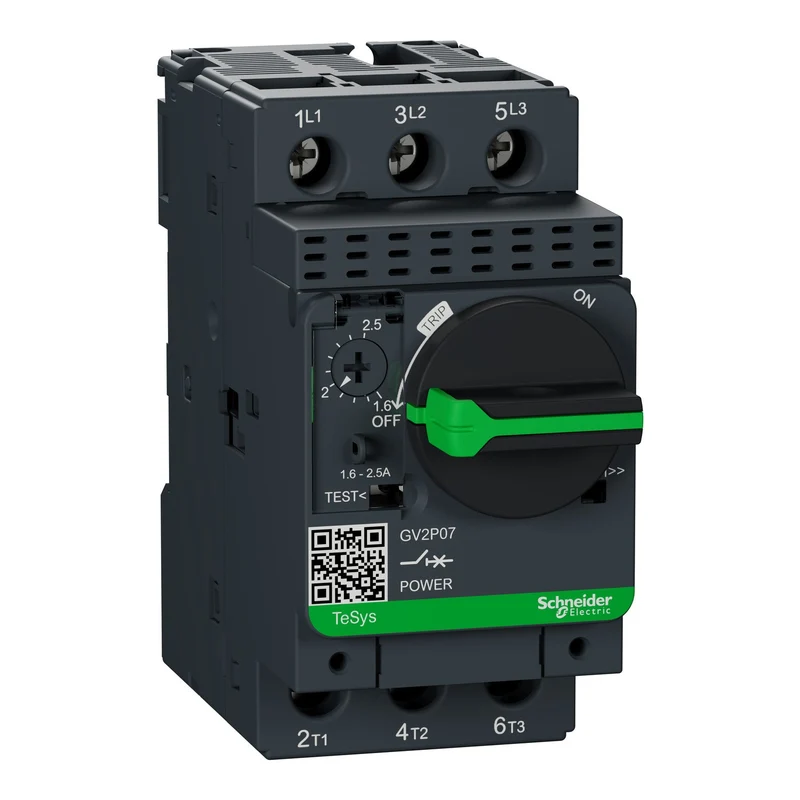

Schneider GV2P07 TeSys GV2 Motor Circuit Breaker 3P 1.6-2.5A 100kA

The Schneider Electric GV2P07 is a 3-pole motor circuit breaker from the TeSys GV2 range, providing thermomagnetic protection for motors in industrial control applications.

• Reference: GV2P07
• Range: TeSys GV2
• Model: GV2P
• Type: Motor circuit breaker
• Protection: Thermomagnetic
• Poles: 3P
• Rated current (In): 1.6–2.5 A
• Motor power: 0.75 kW at 400/415 V AC 50/60 Hz
• Breaking capacity (Icu): 100 kA at 230/240 V AC 50/60 Hz per IEC 60947-2
• Utilisation category: Category A per IEC 60947-2
