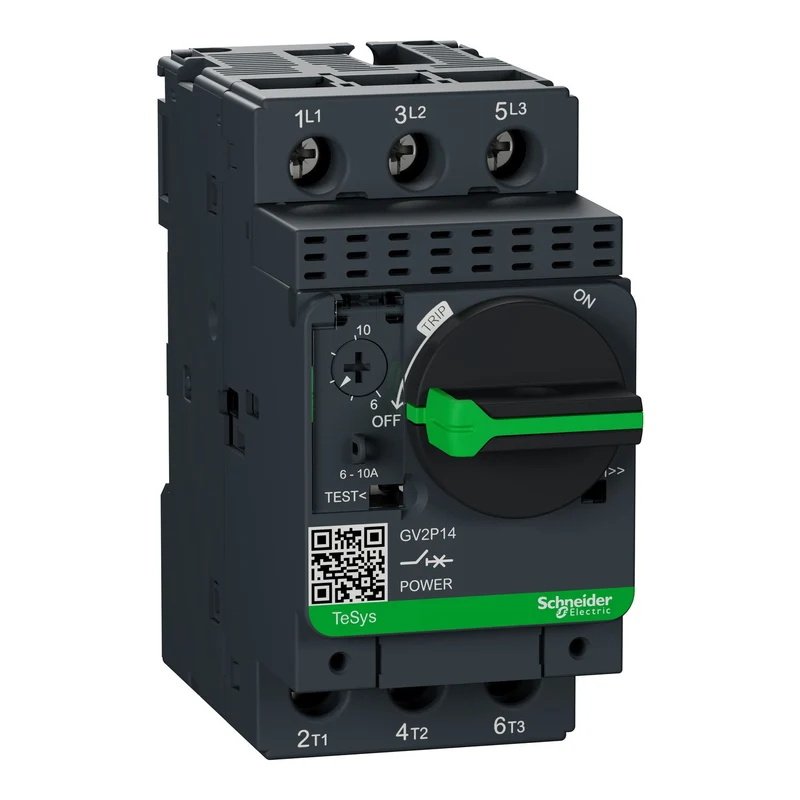

Schneider GV2P14 TeSys GV2 Motor Circuit Breaker 3P 6–10 A 3 kW

The Schneider Electric GV2P14 is a 3-pole thermal-magnetic motor circuit breaker from the TeSys GV2 range, providing overload and short-circuit protection for motors up to 3 kW.

• Reference: GV2P14
• Range: TeSys GV2
• Model: GV2P
• Type: Motor circuit breaker with thermal-magnetic protection
• Poles: 3P
• Current setting range: 6–10 A
• Rated current (In): 10 A
• Motor power: 3 kW at 400/415 V AC 50/60 Hz
• Breaking capacity (Icu): 100 kA at 230/240 V AC 50/60 Hz per IEC 60947-2
• Utilisation category: Category A per IEC 60947-2
