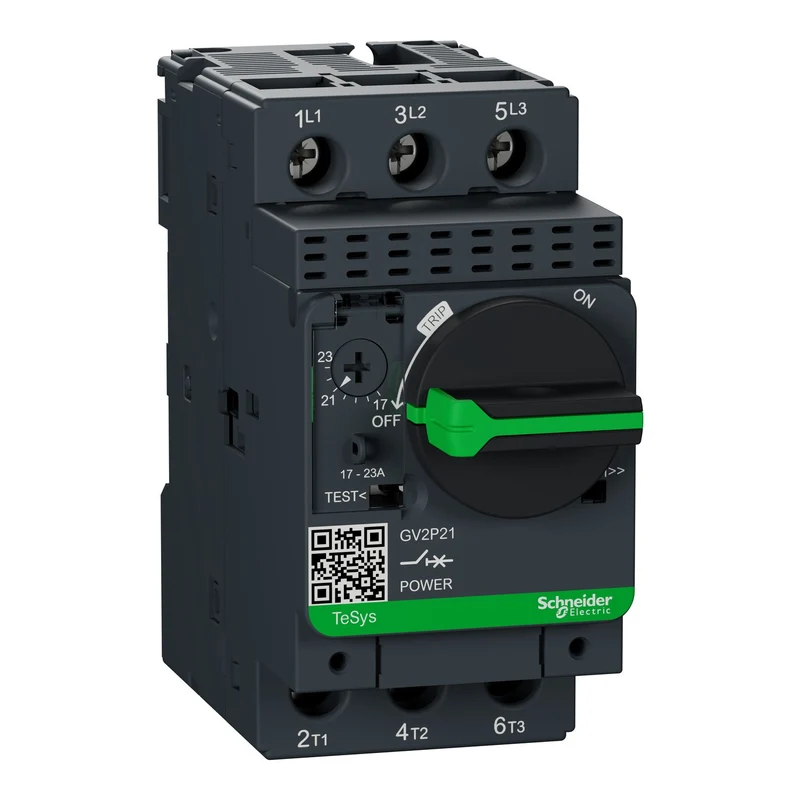

Schneider GV2P21 TeSys GV2 Motor Circuit Breaker 3P 17-23A 9kW 100kA

The Schneider Electric GV2P21 is a 3-pole TeSys GV2 motor circuit breaker with integrated thermomagnetic protection, covering a current setting range of 17–23 A and intended for motor protection in industrial installations per IEC 60947-2.

• Reference: GV2P21
• Range: TeSys GV2
• Model: GV2P
• Type: Motor circuit breaker
• Poles: 3P
• Current setting range: 17–23 A
• Rated current (In): 23 A
• Motor power: 9 kW at 400/415 V AC 50/60 Hz
• Breaking capacity (Icu): 100 kA at 230/240 V AC 50/60 Hz per IEC 60947-2
• Utilisation category: Category A per IEC 60947-2
